Everspring
In-Wall Dimmer Module
AD146-0
Light Dimmer Switch
02
SD3502
6.51.02
0x0060 (96)
0x0003 (3)
0x0002 (2)
ZC10-14080014
2014-07-11 16:04:42.895334
N/A
Enhanced 232 Slave
Always On Slave
The AD146 is a in-wall dimmer module.
The In-Wall Dimmer Module is a Z-Wave enabled device which is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave enabled networks. Inclusion of this unit on other manufacturer’s Wireless Controller menu allows remote operation of the unit and the connected load. Z-Wave node in the system also acts as a repeater, so as to re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. The In-Wall Dimmer Module is designed to control the on/off status of lighting and appliances load in your house. The unit also provides dimmer function which is only applicable to light bulbs. AC 230V voltage, this module can support up to 300W resistive/ incandescent load, or 200W fluorescent load.

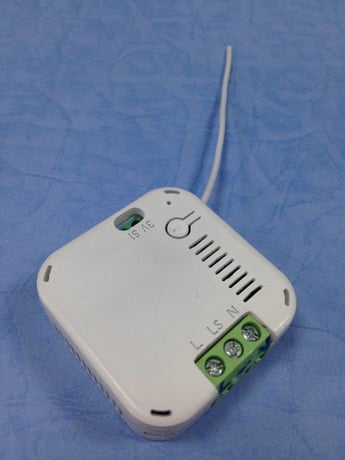

Product Picture
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode.
NA
(This procedure should only be used when the primary controller is no longer operational.) 1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold until LED is off (about 5 sec.). 3. Node ID is excluded, and the unit is returned to the factory default state.
