Vision
Smoke Detector
ZS6101EU-5
Notification Sensor
02
ZM5202
6.51.02
0x0109 (265)
0x2004 (8196)
0x04A4 (1188)
ZC10-14080004
2014-08-05 17:17:33.898672
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
The ZS6101EU-5 is a Z-WAVE enabled smoke detector.
The ZS6101EU-5 is a Z-WAVE enabled smoke detector which is designed to sense smoke that comes into the detector's chamber and send Z-WAVE signal and warning sound (with audibility as 85dB at 3m) if it detects a certain density of smoke. The detector is battery operated and includes the ability to detects the battery level and will report an alert signal if the battery is under certain low level. The sensitivity of its sensor is meet both UL217 and EN14604 standard. The ZS6101EU-5 also supports its firmware could updated over Z-WAVE network.

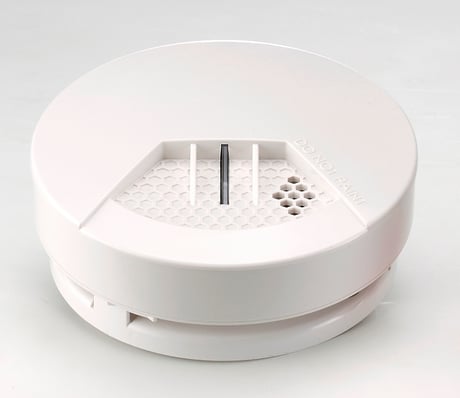

Product Picture
Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZS6101-5 to your controller. To get in the “inclusion” mode, the distance between detector and controller is suggested to be in one meter. Press the program switch of ZS6101-5 for 1 second at least to be included. After setting, the LED Setting Lighting should go off, if not, please try again. (Please refer to the user manual to understand the program switch location)
Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZS6101-5 from your controller. Press the program switch of ZS6101-5 for 1 second at least to be excluded. The red LED setting light will flash continuously in Exclusion condition. (Please refer to the user manual to understand the program switch location)
Press program switch once, the detector will send NIF signal first and will also send “Wake Up Notification” after 3 seconds. (Please refer to the user manual to understand the program switch location)
