Everspring
On/Off Mini Plug
AN180-6
On/Off Power Switch
02
SD3502
6.51.02
0x0060 (96)
0x0004 (4)
0x0007 (7)
ZC10-14080009
2014-08-05 17:08:29.804304
N/A
Enhanced 232 Slave
Always On Slave
The AN180-6 is a on/off switch mini plug
The On/Off Mini Plug is a Z-Wave enabled device which is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave enabled networks. Inclusion of this unit on other manufacturer’s Wireless Controller menu allows remote operation of the unit and the connected load. The On/Off Mini Plug is designed to control the on/off status of lighting and appliances load in your house. At 220-240V voltage, this Plug can support up to 1500W resistive, 800W incandescent, 200W motor, or 200W fluorescent load.

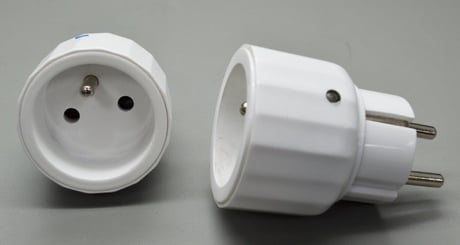

Product Picture
1 - Basic Set Command value
Basic Set Command valueSize: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | |
| 255 | 255 |
2 - The delaying time to report to Group 1
The delaying time to report to Group 1Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 25 |
3 - Remember the last status
1: Remember, 0: do not rememberSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 |
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode. (Please refer to the documentation for the location of the link key.)
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. (Please refer to the documentation for the location of the link key.)
NR
NR
(This procedure should only be used when the network primary controller is inoperable.) 1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold it until LED is off (about 5 seconds). (Please refer to the documentation for the location of the link key.) 3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes.
NR
