Everspring
Metering Mini Plug
AN181-6
On/Off Power Switch
02
SD3502
6.51.02
0x0060 (96)
0x0004 (4)
0x0006 (6)
ZC10-14080015
2014-08-05 17:11:48.006603
N/A
Enhanced 232 Slave
Always On Slave
The AN181-6 is a metering mini plug
The Metering Plug is a Z-Wave enabled device which is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave enabled networks. Inclusion of this unit on other manufacturer’s Wireless Controller menu allows remote operation of the unit and the connected load. The Metering Plug is designed to control the on/off status of lighting and appliances load in your house. For metering the unit can detect up to 10485.75kW/h before resetting to 0 and can support wattage, voltage, ampere, and PF detection. The unit can also detect overload upon which the unit will switch off relay and keep LED flashing until power is off and re-applied. At 220-240V voltage, this Plug can support up to 2500W resistive, 1200W incandescent, 700W motor, or 320W (40W*8) fluorescent load.

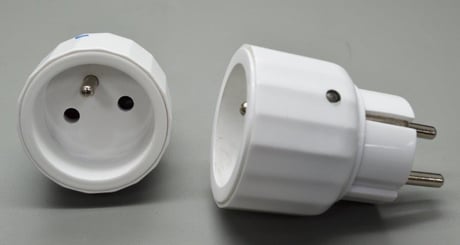

Product Picture
1 - Set Basic Set Command value
Set Basic Set Command valueSize: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | |
| 255 | 255 |
2 - Set the delaying time to report to Group 1
Set the delaying time to report to Group 1Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 25 |
3 - Set whether to remember the last status
Set whether to remember the last status, 1: remember, 0: do not rememberSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 |
4 - Set the interval for wattage auto report
Set the interval for wattage auto reportSize: 2 bytes
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 |
5 - Set the interval for kW*h auto report
Set the interval for kW*h auto reportSize: 2 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 |
6 - Auto report when load surpasses the set value of wattage
Auto report when load surpasses the set value of wattageSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2500 |
7 - Auto report when the change of wattage surpasses the set percentage
Auto report when the change of wattage surpasses the set percentageSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 |
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode. (Please refer to the documentation for the location of the link key.)
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. (Please refer to the documentation for the location of the link key.)
NR
NR
(This procedure should only be used when the network primary controller is inoperable.) 1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold it until LED is off (about 5 seconds). (Please refer to the documentation for the location of the link key.) 3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes..
NR
