Xuan
Xuan
STACK Box
Central Controller
1
ZM5304
6.51.02
0x0200 (512)
0x0001 (1)
0x0001 (1)
ZC10-14090011
2014-08-25 17:44:41.371392
N/A
Static Controller
Central Static Controller
An Internet of Things gateway/hub with support of Z-Wave Plus and other communication protocols
The STACK Box is a A Smart Home Controller. The STACK Box connects all your smart devices that control your homes lighting, energy, audio, video, security, healthcare and wearable's. The controller can be accessed locally and remotely with your smartphone and, or tablet.

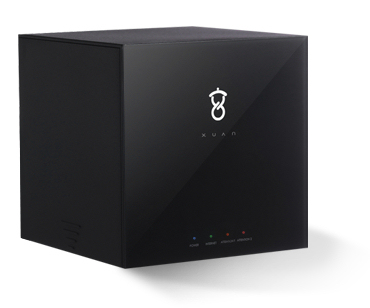

Product Picture
If the STACK Box is a primary controller, use the menu option ""Add"" from the top level menu of the STACK Box web interface to add any device or and secondary controller from the STACK Box Z-Wave network. Use the menu option ""Exclude"" from the top level menu of the STACK Box web interface to remove any device or and secondary controller from the STACK Box Z-Wave network.
N/A
Use this procedure only in the event that the network primary controller is lost or otherwise inoperable. At the back of the box, look for ""Reset"" mark. Use a sharp pin to press inside the hole above the mark for more than 4s.
N/A
To add the STACK Box to an existing Z-Wave Network and use the STACK Box as a secondary controller, follow the instructions in your primary controller's user manual to put the controller into inclusion mode, and then from the top level menu of the STACK Box web interface, select 'Learn' to initiate inclusion on the STACK Box.
To remove the STACK Box from an existing Z-Wave Network as a secondary controller, follow the instructions in your primary controller's user manual to put the controller into exclusion mode, and then from the top level menu of the STACK Box web interface, select 'Learn' to initiate exclusion on the STACK Box.
