In-Wall On/Off Switch
WS-100
On/Off Power Switch
HW: 255
ZM5202
6.51.02
0x0184 (388)
0x4447 (17479)
0x3033 (12339)
ZC10-14090003
2014-08-31 14:09:29.546125
N/A
Enhanced 232 Slave
Always On Slave
WS-100 In Wall On/Off Switch - Replaces existing wall switch - Remotely or manually turns On or Off lights - Fits standard wall plates - Z-Wave Plus certified with 500 series chipset
WS-100 In Wall On/Off Switch - Works with incandescent, florescent (CFL), or LED lighting and appliances - ON/OFF status and location LED indicator - Fits into standard single or multiple gang junction box - Keypad can be replaced manually to match color with other wall switches - Over-The-Air firmware upgrade available with compatible gateway, Z-Wave static controller, or PC and software. - Internal resettable fuse to protect from surge current - Manual reset capability

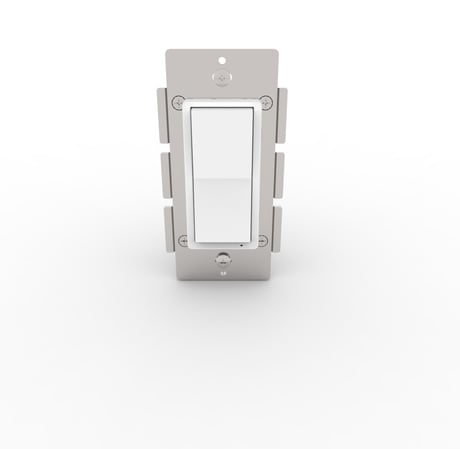

Product Picture
3 - LED Indicator
This parameter controls the state of the LED indicator with regard to the on/off state of the wall switch.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The LED indicator will turn ON whenever the connected appliance or light is turned OFF. When the appliance is turned ON, the LED will turn OFF. |
| 1 | 1 | The LED indicator will turn ON whenever the connected appliance is turned ON and the LED will turn OFF when the appliance is turned OFF. |
| 2 | 2 | LED will always be turned OFF regardless of the ON/OFF status of the connected appliance. |
4 - Orientation of On/Off Rocker Switch
The orientation of the ON/OFF on the rocker switch can be invertedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The connected light will turn ON by pressing the top side of the rocker switch and turn OFF by pressing the bottom side. |
| 1 | 1 | The connected light will turn OFF by pressing the top side of the rocker switch and turn ON by pressing the bottom side. |
1. Turn the connected appliance ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Add(Include) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. 3. Normally, the sequence is as follows: when the inclusion process is prompted by your primary controller, single click and release the rocker switch to ON or OFF position. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure.
1. Turn the connected appliance ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Delete(Exclude) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. Normally, the sequence is as follows: when the exclusion process is prompted by your primary controller, single click and release the rocker switch. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure.
Please use this procedure only in the event that the network primary controller is lost or otherwise inoperable. All Configuration Parameters can all be restored to their factory default settings by using your primary controller to delete/reset the device. To manually reset, tap the ON button twice quickly and then tap the OFF button twice quickly. Repeat the procedure to restore the settings to the factory default.
