devolo
Metering Plug
MT02646
On/Off Power Switch
01
SD3502
6.51.00
0x0175 (373)
0x0001 (1)
0x0011 (17)
ZC10-14090006
2014-09-03 12:39:09.112515
N/A
Enhanced 232 Slave
Always On Slave
This Metering Plug is a security enabled wireless powerplug, based on Z-Wave Plus technology. The device is able to detect current wattage and overload wattage of connected lights or appliances. When detecting overload state, the Plug will be disabled and its On/Off button will be locked. A powercycle will reset its overload status back to normal.
This plug-in ON/OFF switch Home Control Metering Plug is a security enabled wireless switch, based on Z-Wave Plus technology. Z-Wave Plus™ enabled devices displaying the Z-Wave Plus™ logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-Wave™ enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. Because Home Control Metering Plug supports Security Command Class, it can be added with a Secured controller. Its functionality and supported command classes is identical when included as a secure and non-secure device. This plug-in ON/OFF switch is able to detect instance wattage (3000W/CE/CN,1500W/UL/TW/JP) and overload current (14.5A) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status.

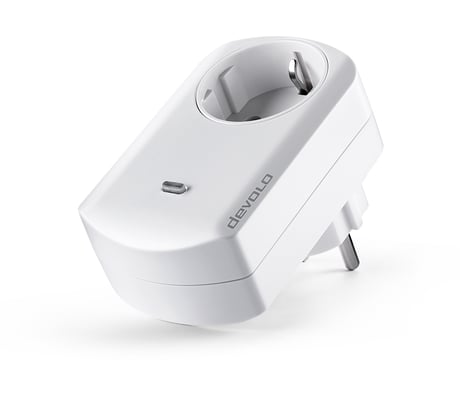

Product Picture
1 - Watt Meter Report Period
This configuration parameter determines how often meter reporting of instantaneous watt usage is reported automatically. Each unit is 5 seconds. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr).Size: 2 bytes
Default: 720
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | Enable automatic interval reporting with an interval of 5 * the value. |
| 0 | 0 | Disable automatic interval meter reporting of Watts |
2 - KWH Meter Report Period:
This parameter controls the frequency at which the kWh value of the meter is reported to the node in association group 1. This setting is in units of 10 minutes. The maximum interval to report its Accumulated Power Consumption (KW/h) is 227.55 days (10min*32767/1440=227.55 days).Size: 2 bytes
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | 6*10 min=1 hour |
| 0 | 0 | Disable automatic interval meter kWh reporting. |
3 - Threshold of current for Load Caution
This is a warning when the current of load over the preset threshold value, if the setting value is 1300, when the load current of Relay1 over this value, Home Control Metering Plug will send current meter report to warn the Group1 node, the Range of the setting value is from 10 to 1300,and the default value is 1300.Size: 2 bytes
Default: 1300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 1300 | 1300*0.01A = 13A |
4 - Threshold of KWh for Load Caution
This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of Relay1 over this value, Home Control Metering Plug will send KWH meter report to warn the Group1 node, minimum value is 1KWh and default value is 10000 kWh.Size: 2 bytes
Default: 10000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10000 | Enable automatic warning when the accumulated kWh power consumption exceeds the setting value from 1KWh ~ 10000KWh. |
| 0 | 0 | Disable kWh Load Caution Reporting |
5 - Restore switch state mode
Whenever the AC power return from lost, Home Control Metering Plug will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Upon the return of AC power, the switch will remain Off. |
| 1 | 1 | Upon the return of AC power, the switch will return to the state it was in when the power was turned off. |
| 2 | 2 | Upon the return of AC power, the switch will turn On. |
6 - Mode of switch off function
This configuration parameter determines how the switch will respond to a received SWITCH OFF command.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | SWITCH OFF commands received are ignored. |
| 1 | 1 | SWITCH OFF commands received are honored. |
7 - LED indication mode
This parameter determines the state of the LED display.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | The LED follows the state of the switch. |
| 2 | 2 | Night Mode - When the switch is On, the LED is Off, and when the switch is Off, the LED is On. |
| 3 | 3 | Flash Mode - When the state of the switch changes, the LED will be on for one second and then will turn off. |
8 - Auto off timer
Automatic Shut-Off Setting. This parameter determines the amount of time before the switch is automatically turned off after it has been turned on.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | 1s ~ 32767s for automatically turning off |
| 0 | 0 | Disable the auto off function |
9 - RF off command mode
This parameter determines how the switch responds to the receipt of a SWITCH_ALL_OFF command.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When SWITCH ALL OFF is received, the MT02646 turns Off. |
| 1 | 1 | When SWITCH ALL OFF is received, the MT02646 ignores the command and does nothing. |
| 2 | 2 | When SWITCH ALL OFF is received, the MT02646 will turn On if it is Off, and will turn Off if it is On. |
| 3 | 3 | When SWITCH ALL OFF is received, the MT02646 turns On. |
1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter inclusion mode on the switch.
1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter exclusion mode on the switch.
(Use this procedure only in the event that the primary controller is lost or otherwise inoperable.) 1. Pressing On/Off button three times within 2 seconds will enter inclusion mode on the switch. 2. Within 1 second, press On/Off button again for 5 seconds.
