Aeotec
MultiSensor Gen5
ZW074-A
Notification Sensor
HW: 4A FW: 1.02
ZM5101
6.51.01
0x0086 (134)
0x0102 (258)
0x004A (74)
ZC10-14110008
2014-11-03 16:36:27.959857
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Aeon Labs MultiSensor Gen5 is a Z-Wave motion sensor, temperature sensor, humidity sensor, and lighting sensor all in one package.
The Aeotec by Aeon Labs MultiSensor Gen5 looks like a motion sensor and it acts like one too. But it’s also so much more. Installing this 1 piece of Z-Wave technology is the same as installing 4 pieces of Z-Wave technology. Your home control network will immediately understand motion, temperature, humidity and light readings wherever Multisensor installed. Those intelligent readings will equate to intelligence automation. And intelligent automation will give you the perfect, smart home.

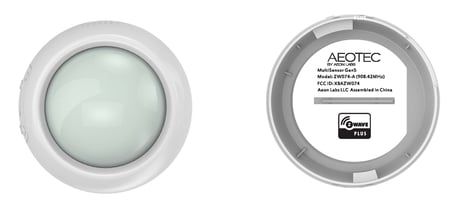

Product Picture
2 - Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor.
This parameter is used to enable/disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. 1. Value = 0, disable. 2. Value =others, enable.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. |
| 1 | 1 | Enable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. |
3 - Timeout of the motion sensor
This parameter is used to set the timeout for the motion sensor. Note: (1), The time unit is second if the value range is in 1 to 255. (2), If the value range is in 256 to 15300, the time unit will be minute and its value should follow the below rules: a), Interval time =Value/60, if the interval time can be divided by 60 and without remainder. b), Interval time= (Value/60) +1, if the interval time can be divided by 60 and has remainder. (3), Other values will be ignored.Size: 2 bytes
Default: 240
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | The unit of timeout is second. |
| 256 | 15300 | The unit of timeout is minute. |
4 - Enable/disable the function of motion sensor.
This parameter is used to enable/disable the function of motion sensor. 1. Value=0, disable. 2. Value=1, enable.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable the function of motion sensor. |
| 1 | 1 | Enable the function of motion sensor. |
5 - Which command would be sent when the motion sensor triggered.
This parameter is used to configure that which command would be sent when the motion sensor triggered. 1. Value=1, send Basic Set CC. 2. Value=2, send Sensor Binary Report CC.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Send Basic Set CC. |
| 2 | 2 | Send Sensor Binary Report CC. |
40 - Enable/disable the selective reporting only when measurements reach a certain threshold or percentage set in 41-44 below.
This parameter is used to enable/disable the selective reporting only when measurements reach a certain threshold or percentage set in the parameter 41 to 44. This is used to reduce network traffic. (0 == disable, 1 == enable)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable the selective reporting. |
| 1 | 1 | Enable the selective reporting. |
41 - Threshold change in temperature to induce an automatic report.
Threshold change in temperature to induce an automatic report. Note: 1. When the unit is Celsius, threshold=Value. 2. When the unit is Fahrenheit, threshold=Value*1.8 The accuracy is 0.1.Size: 2 bytes
Default: 256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Threshold of temperature. |
42 - Threshold change in humidity to induce an automatic report.
Threshold change in humidity to induce an automatic report.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Threshold of humidity |
43 - Threshold change in luminance to induce an automatic report.
Threshold change in luminance to induce an automatic report.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1000 | Threshold of luminance |
44 - Threshold change in battery level to induce an automatic report.
Threshold change in battery level to induce an automatic report.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Threshold of battery level. |
46 - Enable/disable to send the alarm report of low temperature
This parameter is used to enable/disable to send the alarm report of low temperature(<-15℃) 1, Value=0, disable. 2, Value=1, enable (Note: The MultiSensor will report the Multi Level Temperature CC with the value=0xFFFF to controller if the current temperature is less than -15℃).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable to send the alarm report of low temperature(&amp;amp;amp;amp;amp;amp;lt;-15℃) |
| 1 | 1 | Enable to send the alarm report of low temperature(&amp;amp;amp;amp;amp;amp;lt;-15℃) |
101 - Which report needs to be sent in Report group 1
This parameter is used to configure to send the Humidity sensor, thermometer, light sensor and battery reports automatically in Report group 1. Note: The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, the temperature sensor report is the value 32 and the battery report is the value 1, so setting parameter 101 to a value of 33 will result in both temperature sensor report and battery report to be reported. See the full description of the parameter values for other possible settings.Size: 4 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | The battery report is selected. |
| 32 | 32 | The temperature sensor report is selected. |
| 64 | 64 | The humidity sensor report is selected. |
| 128 | 128 | The light sensor report is selected. |
102 - Which report needs to be sent in Report group 2.
This parameter is used to configure to send the Humidity sensor, thermometer, light sensor and battery reports automatically in Report group 2. Note: The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, the temperature sensor report is the value 32 and the battery report is the value 1, so setting parameter 102 to a value of 33 will result in both temperature sensor report and battery report to be reported. See the full description of the parameter values for other possible settings.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | The battery report is selected. |
| 32 | 32 | The temperature sensor report is selected. |
| 64 | 64 | The humidity sensor report is selected. |
| 128 | 128 | The light sensor report is selected. |
103 - Which report needs to be sent in Report group 3.
This parameter is used to configure to send the Humidity sensor, thermometer, light sensor and battery reports automatically in Report group 3. Note: The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, the temperature sensor report is the value 32 and the battery report is the value 1, so setting parameter 103 to a value of 33 will result in both temperature sensor report and battery report to be reported. See the full description of the parameter values for other possible settings.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | The battery report is selected. |
| 32 | 32 | The temperature sensor report is selected. |
| 64 | 64 | The humidity sensor report is selected. |
| 128 | 128 | The light sensor report is selected. |
111 - The interval time of sending reports in Report group 1
This parameter is used to configure the interval time of the sensor report in Report group 1.Size: 4 bytes
Default: 1800
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | The range of interval time is 5 to 2678400. |
112 - The interval time of sending reports in Report group 2.
This parameter is used to configure the interval time of the sensor report in Report group 2.Size: 4 bytes
Default: 1800
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | The range of interval time is 5 to 2678400. |
113 - The interval time of sending reports in Report group 3
This parameter is used to configure the interval time of the sensor report in Report group 3.Size: 4 bytes
Default: 1800
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | The range of interval time is 5 to 2678400. |
252 - Enable/disable all configuration parameters to be locked
This parameter is used to enable/disable all configuration parameters to be locked. (0 =disable, 1 = enable)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable all configuration parameters to be locked. |
| 1 | 1 | Enable all configuration parameters to be locked. |
255 - Reset to default factory setting
This parameter is used to reset product to default factory setting. (There are just 2 values can be used).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1431655765 | 1431655765 | Reset the product to default factory setting and be excluded from the Z-wave network. |
| 1 | 1 | Resets all configuration parameters to default setting. |
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Z-Wave button that you can find in the back of the product.
Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Z-Wave button that you can find in back of the product.
N/A
Press and hold the Z-Wave button for 3 seconds will trigger sending the Wake up notification command. If press the Z-Wave button 3 times, the MultiSensor will wake up for 10 minutes.
Press and hold the Z-Wave button that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
