Andersen
VeriLock Translator
9125051.0
Repeater
1
ZM5202
6.51.03
0x0178 (376)
0x5A44 (23108)
0x414E (16718)
ZC10-14120001
2014-11-11 16:17:09.885796
N/A
Routing Slave
Always On Slave
The VeriLock Translator™ is a Z-Wave Plus Repeater that receives messages from VeriLock™ Sensors and reports their status over the Z-Wave network to a Z-Wave Controller.
The VeriLock Translator™ is an indoor device that allows users to monitor the status of over 100 VeriLock™ sensors by Nexia Home Intelligence™ using standard Z-Wave interfaces. These sensors are added to the VeriLock Translator™ as Multi Channel End Points. Because the number of sensors in a home is dynamic, the number of End Points on the device is also dynamic. Unlike the VeriLock Translator™, the sensors are NEVER represented as nodes on the Z-Wave network and cannot communicate over the Z-Wave network. Their status, however, is reported by the VeriLock Translator™ over the Z-Wave network via the Multi Channel Command Class. The VeriLock Translator™ is added to the Z-Wave network as a Repeater and implements the Routing Slave library. The VeriLock Translator™ is a Z-Wave Plus certified device.

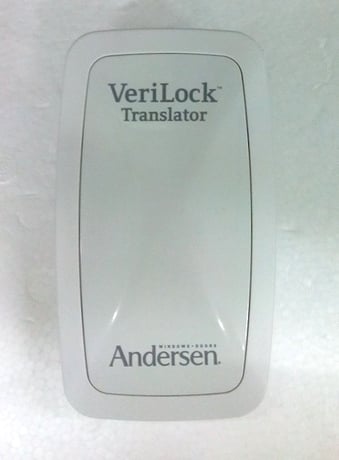

Product Picture
View configuration parameters (3)
1 - Buzzer Volume
Adjust the buzzer volumeSize: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | 100 is max volume. 0 is off. |
2 - Discovery Mode
Start, stop, or get the results of Discovery Mode. Retrieve the configuration parameter to obtain the results of discovery mode: 0=Not Enabled, 1=Enabled, 2=Timed Out, 3=FailureSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Enable |
| 0 | 0 | Disable |
3 - Sleep Mode
Turn Sleep Mode ON or OFF.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | OFF |
| 1 | 1 | ON |
Operating instructions (3)
If not included to a Z-Wave network, the device will attempt to be added to the network at power-up following an LED start-up sequence. The controller must be put into include mode before plugging in the device. During normal operation, after putting the controller into include mode, a single press of the round Z-Wave button will add the device to the Z-Wave network.
After putting the controller in exclude mode, a single press of the round Z-Wave button will remove the device from the Z-Wave network.
The device is factory reset by pressing and holding both the round (Z-Wave) and square (Multi-Purpose) buttons simultaneously for 15 seconds. Please use this procedure only in emergencies such as when the network primary controller is missing or otherwise inoperable. This should always be used as a last resort.
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | 18-HD75D1-1-EN.pdf |
