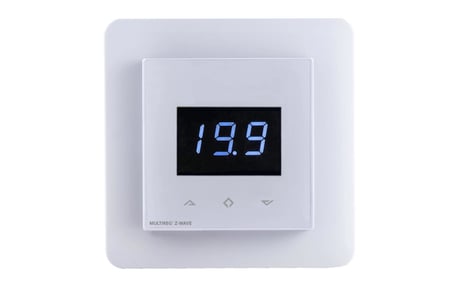

Heatit Z-Wave is an electronic thermostat for mounting in a standard wall box. The thermostat has a built-in Z-Wave chip that can be connected to Home Automation systems like Fibaro, Sensio, Vera, Zipato and others. The display will show the actual room temperature. By pressing the buttons, the display will show the set value. Heatit Z-Wave is equipped with a single-pole switch. The thermostat can handle loads up to 16A/3600W at 230V. If the load is greater than this, the thermostat needs to be connected to a contactor. It can be used with two external temperature sensors. Functions: • Room sensor • Floor sensor • Temperature limiter • Power regulator • Z-Wave chip 500 series • Week program/setback temperature via gateway • Setback mode • 7-segment white LCD-screen • Can be used in connection with different NTC-sensors • Lock mode/child lock • Backlight • Calibration • 8 scenarios CONNECTION CLAMPS Use 1,5 mm² or 2,5 mm² cables according to power need. TECHNICAL DATA Rated voltage: 230 V 50/60 Hz Max. load: 3600W Max. current: 16A Power consumption: 1,5W Protection class: IP21 Min/Max installation temp: -20°C to 40°C Min/Max operating temp: 5°C to 40°C Temperature intervals: Floor sensor 5°C to 40°C Room sensor 5°C to 40°C Hysteresis: 0,5°C Sensor values: 0°C 29,1 kOhm 10°C 18,6 kOhm 15°C 15,1 kOhm 20°C 12,2 kOhm 25°C 10,0 kOhm Breaker: Single-pole
