Heatit controls
Heatit Z-Wave
TF021
Thermostat - HVAC
01
ZM5202
6.51.00
0x019B (411)
0x0001 (1)
0x0001 (1)
ZC10-15020003
2015-01-16 09:51:46.4656
N/A
Routing Slave
Always On Slave
Heatit Z-Wave is an electronic thermostat for mounting in a standard wall box. The thermostat has a built-in Z-Wave chip that can be connected to Home Automation systems like Fibaro, Sensio, Vera, Zipato and others. The display will show the actual room temperature. By pressing the buttons, the display will show the set value. Heatit Z-Wave is equipped with a single-pole switch. The thermostat can handle loads up to 16A/3600W at 230V. If the load is greater than this, the thermostat needs to be connected to a contactor. It can be used with two external temperature sensors.
Heatit Z-Wave is an electronic thermostat for mounting in a standard wall box. The thermostat has a built-in Z-Wave chip that can be connected to Home Automation systems like Fibaro, Sensio, Vera, Zipato and others. The display will show the actual room temperature. By pressing the buttons, the display will show the set value. Heatit Z-Wave is equipped with a single-pole switch. The thermostat can handle loads up to 16A/3600Wat 230V. If the load is greater than this, the thermostat needs to be connected to a contactor. It can be used with two external temperature sensors. FUNCTIONS • Room sensor • Floor sensor • Temperature limiter • Power regulator • Z-Wave chip 500 series • Week program/setback temperature via gateway • Setback mode • 7-segment LCD-screen • Can be used in connection with diff erent NTC-sensors • Lock mode/child lock • Backlight • Calibration • 8 scenarios CONNECTION CLAMPS Use 1,5 mm² or 2,5 mm² cables according to power need. TECHNICAL DATA Rated voltage: 230V 50/60Hz Max. load: 3600W Max. current: 16A Power consumption: 1,5W Protection class: IP21 Min/Max installation temp: -20°C to 40°C Min/Max operating temp: 5°C to 40°C Temperature intervals: Floor sensor 5°C to 40°C Room sensor 5°C to 40°C Hysteresis: 0,5°C Sensor values: 0°C 29,1 kOhm 10°C 18,6 kOhm 15°C 15,1 kOhm 20°C 12,2 kOhm 25°C 10,0 kOhm Switch: Single-pole

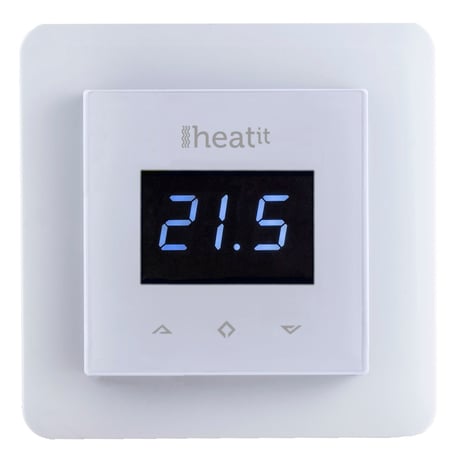

Product Picture
INCLUSION/EXCLUSION To include the thermostat to your home automation gateway, press Center (confirm) for 10 seconds. The display will show OFF. Press Right (down) 4 times till you see Con in the display. Now start add device in your home automation software. Start inclusion mode by pressing Center (confirm) for approximately 2 seconds. The inclusion/exclusion icon will appear in the display. Confirmation will show Inc/EcL in the display. If inclusion fails, Err (error) will appear. Leave programming mode by choosing ESC in menu. Your thermostat is ready for use with default settings.
INCLUSION/EXCLUSION To include the thermostat to your home automation gateway, press Center (confirm) for 10 seconds. The display will show OFF. Press Right (down) 4 times till you see Con in the display. Now start add device in your home automation software. Start inclusion mode by pressing Center (confirm) for approximately 2 seconds. The inclusion/exclusion icon will appear in the display. Confirmation will show Inc/EcL in the display. If inclusion fails, Err (error) will appear. Leave programming mode by choosing ESC in menu. Your thermostat is ready for use with default settings.
FACTORY RESET - RES By pressing buttons Left and Center (up and confirm) for 20 seconds, the thermostat will perform a complete factory reset. NB! Please use this procedure only when the primary controller is missing or otherwise inoperable.
