Jasco Products Company
In-Wall Smart Switch
14318 (ZW4005)
On/Off Power Switch
HW: 255
ZM5202
6.51.06
0x0063 (99)
0x4952 (18770)
0x3130 (12592)
ZC10-15030006
2015-03-18 06:09:20.2332
N/A
Enhanced 232 Slave
Always On Slave
The Jasco Z-Wave Smart Lighting Control Switch replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting.
Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control Switch. The on/off switch replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting. The switch enables wireless control of on/off functions of direct wire incandescent, LED, xenon, halogen and fluorescent lighting. Providing ultimate flexibility, the Jasco Z-Wave Smart Lighting Control On/Off Switch allows you to operate the switch by itself or easily integrate the switch with two-way, three-way or four-way wiring configurations by adding the Jasco Auxiliary switch for Z-Wave. Two-way wiring configuration turns the light or appliance on/off from one location. Three-way wiring configuration turns the light or appliance on/off from two separate locations. Four-way wiring configuration turns the light or appliance on/off from three separate locations. The GE Auxiliary Switch for Z-Wave is required for Three-way or Four-way installations. The lighting control includes a blue LED indicator light to easily locate the switch in a dark room. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!

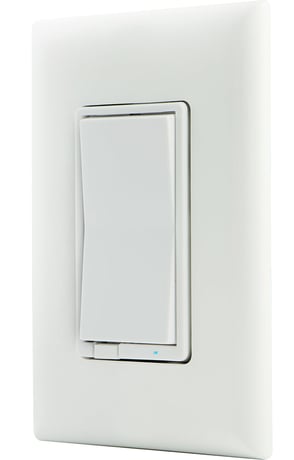

Product Picture
3 - LED
When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This allows the LED to indicate the switch’s location in a dark room. To make the LED turn ON when the light is turned ON, change parameter 3’s value to 1, To turn the LED OFF at all times, change parameter 3’s value to 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | To make the LED turn ON when the light is turned ON, change parameter 3’s value to 1 |
| 2 | 2 | To turn the LED OFF at all times, change parameter 3’s value to 2 |
4 - Invert Switch
If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | The default On/Off rocker orientation can be reversed by changing parameter 4’s value to “1”. |
1. Follow the instructions for your Z-wave certified controller to include a device to the Z-wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the wireless smart switch(rocker) to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-wave network to optimize performance.
1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the top or bottom of the wireless smart switch(rocker) to exclude it from the network.
1. Quickly press ON (Top) button three (3) times then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. Note: This should only be used in the event your networks primary controller is missing or otherwise inoperable.
