Vision
Wireless Siren & Strobe Alarm, Battery Type
ZM1601US-5
Siren
HW: 0.0 FW: 24.07
ZM5202
6.51.06
0x0109 (265)
0x2005 (8197)
0x0508 (1288)
ZC10-15050013
2015-04-15 06:39:50.2584
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Wireless siren will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave™ enabled network.
Features: *Loud audible alarm>105dB@1 meter *LED strobe lighting *Low battery detection *Siren for Battery Back-Up *100ft line of sight *LED Status Indicator *Operating temp: -15oC~60oC *Working Voltage: 6V *Dimensions: 116*77*40mm

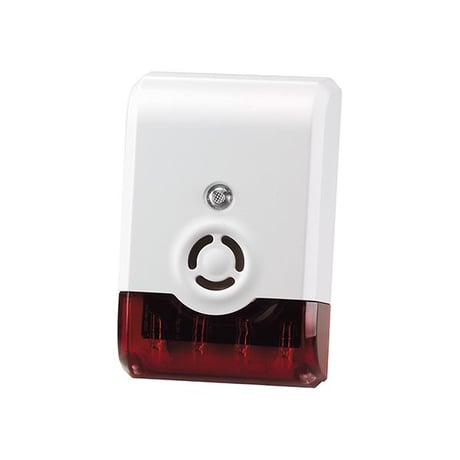

Product Picture
1 - Siren/Strobe mode
User can change value from 0 to 2 to turn either Siren sound, Strobe light, or both when triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | All Enable - Default |
| 1 | 1 | Siren Only |
| 2 | 2 | Strobe Only |
2 - Alarm Auto Stop Time
User can change the duration of siren time when triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 30 seconds - Default |
| 1 | 1 | 60 seconds |
| 2 | 2 | 120 seconds |
| 3 | 3 | Will Not Automatically Stop |
Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZM 1601 to your controller. To get in the “inclusion” mode, the distance between siren and controller is suggested to be in one meter. Open the bracket and press the program switch of ZM 1601 for 1 second at least & release to be included. After setting, the LED Setting Light should go off,
Set up the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZM 1601 from your controller. Press the program switch of ZM 1601 for 1 second at least & release to be excluded. After setting The LED setting light will flash again
removing the back cover of the ZM1601 to get into “Awake” mode
1. Support OTA firmware update from controller 2. Support Explorer Frame function
