Z-Wave.Me
Secure Key Chain Controller
ZME_KFOBC
Remote Control - Simple
1.0
ZM5202
6.51.03
0x0115 (277)
0x0100 (256)
0x0103 (259)
ZC10-15050016
2015-04-02 08:57:56.9018
N/A
Portable Controller
Portable Controller

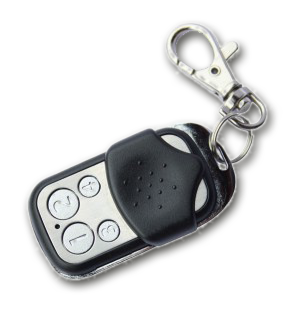

The Z-Wave.Me Key Fob is a Z-Wave device that can both control other Z-Wave devices as primary controller and activate scenes as secondary controller.
The Secure Key Fob Controller is a 4 button Z-Wave device capable to act both as primary or secondary controller. The four buttons can control other Z-Wave devices such as switches, dimmer and even door locks directly. Various options - configurable by Z-Wave configuration commands - define the actions and the commands used for this control. It is possible to use two sets of buttons (one of on/open/up and one for off/closed/down) or 4 single buttons to control 4 different groups of devices. The controller also allows triggering scenes in a central controller. Again different modes can be configured to adapt to the various implementations of scenes in different central controllers in the market. Control options also include special modes like 'all on/off' or always controlling the Z-Wave device in proximity to the fob. The device supports secure communication when included with enhanced security option and when communicating to a device also supporting enhanced security option. Otherwise the device will automatically turn into normal communication. to maintain backward compatibility.
1 - Button 1 and 3 pair mode
In separate mode button 1 works with group A, button 3 with groups C. Click is On, Hold is dimming Up, Double click is Off, Click-Hold is dimming Down. In pair button 1/3 are Up/Down correspondingly. Click is On/Off, Hold is dimming Up/Down. Single clicks works with group A, double click with group C.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | In pair with double clicks |
| 0 | 0 | seperately |
| 1 | 1 | In pair without double clicks |
2 - Button 2 and 4 pair mode
In separate mode button 2 works with control group B, button 4 with control group D. Click is On, Hold is dimming Up, Double click is Off, Click-Hold is dimming Down. In pair button B/D are Up/Down correspondingly. Click is On/Off, Hold is dimming Up/Down. Single clicks works with group B, double click with group D.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | In pair with double clicks |
| 1 | 1 | In pair without double clicks |
| 0 | 0 | seperately |
11 - Command to Control Group A
This parameter defines the command to be sent to devices of control group A when the related button is pressedSize: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 5 | Send Preconfigured Scenes |
| 7 | 7 | Control DoorLock |
| 8 | 8 | Central Scene to Gateway |
| 0 | 0 | Disabled |
| 1 | 1 | Switch On/Off and Dim (send Basic Set and Switch Multilevel) |
| 2 | 2 | Switch On/Off only (send Basic Set) |
| 3 | 3 | Switch All |
| 4 | 4 | Send Scenes |
12 - Command to Control Group B
This parameter defines the command to be sent to devices of control group B when the related button is pressedSize: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 4 | 4 | Send Scenes |
| 3 | 3 | Switch All |
| 5 | 5 | Send Preconfigured Scenes |
| 7 | 7 | Control DoorLock |
| 8 | 8 | Central Scene to Gateway |
| 0 | 0 | Disabled |
| 1 | 1 | Switch On/Off and Dim (send Basic Set and Switch Multilevel) |
| 2 | 2 | Switch On/Off only (send Basic Set) |
13 - Command to Control Group C
This parameter defines the command to be sent to devices of control group C when the related button is pressedSize: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 1 | Switch On/Off and Dim (send Basic Set and Switch Multilevel) |
| 2 | 2 | Switch On/Off only (send Basic Set) |
| 3 | 3 | Switch All |
| 4 | 4 | Send Scenes |
| 5 | 5 | Send Preconfigured Scenes |
| 7 | 7 | Control DoorLock |
| 8 | 8 | Central Scene to Gateway |
14 - Command to Control Group D
This parameter defines the command to be sent to devices of control group D when the related button is pressedSize: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Switch On/Off and Dim (send Basic Set and Switch Multilevel) |
| 0 | 0 | Disabled |
| 2 | 2 | Switch On/Off only (send Basic Set) |
| 3 | 3 | Switch All |
| 4 | 4 | Send Scenes |
| 5 | 5 | Send Preconfigured Scenes |
| 7 | 7 | Control DoorLock |
| 8 | 8 | Central Scene to Gateway |
21 - Send the following Switch All commands
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Switch off only |
| 2 | 2 | Switch on only |
| 255 | 255 | Switch all on and off |
22 - Invert buttons
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Yes |
| 0 | 0 | No |
25 - Blocks wakeup even when wakeup interval is set
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Wakeup is blocked |
| 1 | 1 | Wakeup is not blocked |
30 - Send unsolicited Battery Report on Wake Up
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No |
| 1 | 1 | To same node as wake up notification |
| 2 | 2 | Broadcast |
When in factory default push Button 1 (secure) or Button 2 (normal) for one second to enter learn mode. The learn mode is indicated by a blinking LEDs red/green. Learn mode will only activate when device is in factory reset state.
Enter management mode by push all four buttons together for one second - green led blinks slowly), then hit button 2 .
Enter management mode by push all four buttons together for one second - green led blinks slowly), then hit button 3 followed by keeping button 4 pushed down for 10 seconds. The first five seconds the green LED still blinks followed by a long red, shot green sequence. Once LEDs go off, reset was executed. Please use this procedure only if the device is secondary controller and the primary controller is missing or otherwise inoperable.
When in factory default push Button 3 (secure) or Button 4 (normal) for one second to enter inclusion mode. The inclusion mode is indicated by a blinking green LED. From second device on you need to enter management mode push all four buttons together for one second - green led blinks slowly), hit button 3 ( enter primary controller functions - green led blinks faster) and then button 1 (secure) or button 2 (normal).
Enter management mode by push all four buttons together for one second - green led blinks slowly), hit button 3 ( enter primary controller functions - green led blinks faster) and then button 3 again.
