D-Link Corporation
mydlink® Connected Home Hub
DCH-G020
Central Controller
01
SD3503
6.51.03
0x0108 (264)
0x0020 (32)
0x0001 (1)
ZC10-15020012
2015-04-15 10:48:13.1256
N/A
Static Controller
Central Static Controller
The mydlink® Connected Home Hub (DCH-G020) connects to your existing home network providing an easy way to connect your Home Automation battery-powered mydlink Z-Wave devices.
The mydlink® Connected Home Hub (DCH-G020) allows you to easily manage your mydlink Home Automation and Security products while the mydlink Home app gives you the control to manage and know your home is safe even when you are not there. The mydlink Hub is designed with Wi-Fi and Z-Wave to connect the full suite of wireless mydlink connected home devices, including battery-powered Z-Wave Open/Close and motion sensors. With the mydlink Hub and mobile app, you can turn your devices on and off, set lighting schedules, and automate the devices you use the most. When your home reacts to you, it’s not magic – but it’s pretty close.

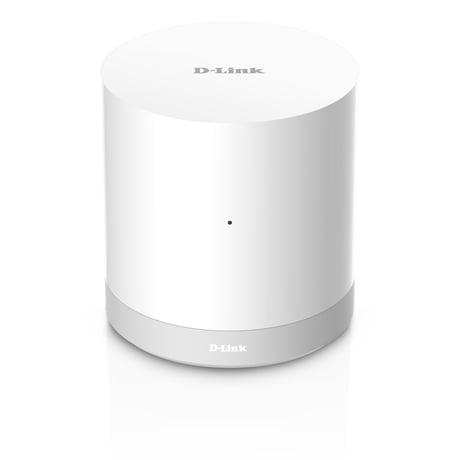

Product Picture
Press the [Learn Mode] button on GUI.
This is not a battery device, always in awake state.
Press and hold the “Reset button” for 5 seconds on DCH‐G020
N/A
This process (also known as ""pairing"" and ""adding"") is achieved by pressing “Wireless button” on DCH‐G020 or pushing the [Include NEW Device] button on GUI being into the inclusion mode.
This process is achieved by holding “Wireless button” for 5 seconds on DCH‐G020 or pushing the [Exclude Device] button on GUI being into the exclusion mode.
