Philio
Flood Multisensor
PAT02-1A
Notification Sensor
01
SD3502
6.51.06
0x013C (316)
0x0002 (2)
0x001F (31)
ZC10-15040009
2015-04-22 19:02:48.739
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
The flood multisensor PAT02 has flood, temperature and humidity, 3 sensors function in one, based on Z-Wave™ technology.
The flood multisensor PAT02 has flood, temperature and humidity, 3 sensors function in one, based on Z-Wave™ technology. Using Z-Wave™ plus technology, it supports security and Over-The-Air updating.

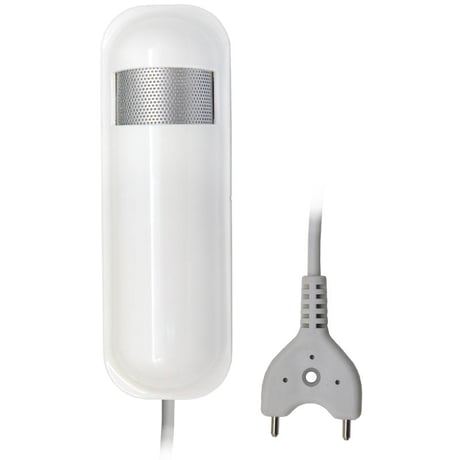

Product Picture
1 - Basic Set OFF Level
Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Setting the BASIC command value 0x00. |
2 - Basic Set ON Level
Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Setting the BASIC command value 0xFF. |
5 - Operation Mode
Operation mode. Using bit to control. Bit0: Disable the Flood function. Bit1: Reserve. Bit2: Reserve. Bit3: Setting the temperature scale. 0: Fahrenheit, 1:Celsius Bit4: Reserve. Bit5: Disable the temperature report after event triggered. (1:Disable, 0:Enable) Bit6: Reserve. Bit7: Reserve.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Disable the Flood function. |
| 8 | 8 | Setting the temperature scale. 0: Fahrenheit, 1:Celsius |
| 32 | 32 | Disable the temperature report after event triggered. (1:Disable, 0:Enable) |
6 - Mult-Sensor Function Switch
Multisensor function switch. Using bit to control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 64 | 64 | Disable the humidity report after event triggered. (1:Disable, 0:Enable) |
7 - Customer Function
Customer function switch, using bit control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 32 | 32 | Disable Multi CC in auto report. (1:Disable, 0:Enable) |
| 64 | 64 | Disable to report battery state when the device triggered. (1:Disable, 0:Enable) |
| 8 | 8 | Disable send out BASIC OFF after the flood event cleared. (1:Disable, 0:Enable) |
| 16 | 16 | Notification Type, 0: Using Notification Report. 1: Using Sensor Binary Report. |
10 - Auto Report Battery Time
The interval time for auto report the battery level. 0 means turn off auto report. The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 18
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the battery level. |
13 - Auto Report Temperature Time
The interval time for auto report the temperature. 0 means turn off auto report. The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 18
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the temperature. |
14 - Auto Report Humidity Time
The interval time for auto report the humidity. 0 means turn off auto report. The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 18
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the humidity. |
15 - Auto Report Flood Time
The interval time for auto report the flood state. 0 means turn off auto report. The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 18
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the flood state. |
20 - Auto Report Tick Interval
The interval time for auto report each tick. Setting this configuration will effect configuration No.10, No.13, No.14 and No.15. Units of one minute. Caution1: Setting to 0 means turn off all auto report function. Caution2: The value is unsigned byteSize: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | The interval time for auto report each tick. |
21 - Temperature Differential Report
The temperature differential to report. 0 means turn off this function. The unit is Fahrenheit. Enable this function the device will detect every 10 seconds. And when the temperature is over 140 degree Fahrenheit, it will continue report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The temperature differential to report. 0 means turn off this function. |
23 - Humidity Differential Report
The humidity differential to report. 0 means turn off this function. The unit is percentage. Enable this function the device will detect every 10 seconds.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 60 | The humidity differential to report. |
The device have auto inclusion function, if the device not add into Z-Wave network, after power up, it will into the auto inclusion (NWI) mode. In this mode, let the Z-Wave™ Controller entered inclusion mode, the device will added. The NWI mode will timeout in 30 seconds. After that you can pressing the tamper key three times within 1.5 seconds to manual inclusion with Z-Wave controller. After inclusion successful, the device will awake to receive the setting command from Z-Wave™ Controller about 20 seconds.
1. Have Z-Wave™ Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded.
When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy.
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3. IDs are excluded and all settings will reset to factory default.
1. Have Z-Wave™ Controller entered association mode. 2. Pressing tamper key three times within 1.5 seconds to enter the association mode. Note: The device support 2 groups. The group 1 is for receiving the report message, like triggered event, temperature, humidity etc. The group 2 is for the light control, the device will send the “Basic Set” command to this group. And each group support 8 nodes maximum.
