Aeotec
LED Bulb
ZW098-A52
Light Dimmer Switch
62
ZM5101
6.51.06
0x0086 (134)
0x0103 (259)
0x0062 (98)
ZC10-15050011
2015-05-13 08:06:58.7664
N/A
Enhanced 232 Slave
Always On Slave
Aeotec LED Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave.
Aeotec LED Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave. It’s a bulb has a Smart RGB LED, which can be used to add colour to your home. The bulb has 5 main colour channels available for you to adjust: Red, Green, Blue, Warm White and Cold White. You can configure its colour according to your favour. The LED Bulb is also a security Z-wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade.

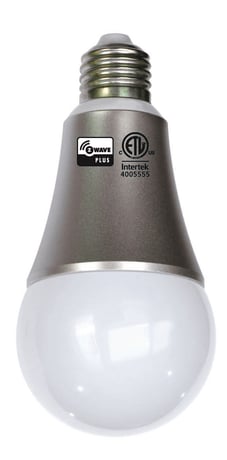

Product Picture
34 - Enable/disable the function of using external switch to turn on/off the bulb.
This parameter is used to enable/disable the function of using external switch to turn on/off the bulb.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
35 - Enable/disable the function of using external switch to turn on/off the bulbs color.
This parameter is used to enable/disable the function of using external switch to turn on/off the bulb's color.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
80 - Enable/Disable to send notifications to associated devices to associated devices.
This parameter is used to Enable/Disable to send notifications to associated devices (in Group 1) when the state of bulb is changed. (0=Send nothing, 1=Send hail CC, 2=Send basic report CC).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send Nothing (Disabled) |
| 1 | 1 | Send HAIL Command |
| 2 | 2 | Send BASIC Report Command |
200 - Partner ID
This parameter is used to configure the partner ID. (0== Aeon Labs Standard Product, 1~255== others).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Aeon Labs Standard Product |
| 1 | 255 | Partner ID of Partner Product |
252 - Enable/Disable Lock Configuration
This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | All configuration parameters are configurable. |
| 1 | 1 | All configuration parameters are not configurable (Locked). |
255 - Reset to default factory setting
This parameter is used to reset product to default factory setting. (There are just 2 values can be used).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1431655765 | 1431655765 | Reset the product to default factory setting and be excluded from the Z-wave network. |
| 1 | 1 | Resets all configuration parameters to default setting. |
Turn the primary controller of Z-Wave network into inclusion mode, press the external switch of LED Bulb to turn it off and then press the external switch again to turn it on.
Turn the primary controller of Z-Wave network into exclusion mode, press the external switch of LED Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times.
N/A
N/A
Turn the controller of Z-Wave network into exclusion mode, press the external switch of LED Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times. After the LED Bulb is excluded from network, it will be reset to factory default state. Use this procedure only in the event that your primary network controller is missing or inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
