TIMEVALVE
TIMEVALVE SMART
HY-15-05A
Valve - Open/Close
01
ZM5101
6.51.06
0x022A (554)
0x0100 (256)
0x0100 (256)
ZC10-15050010
2015-05-14 06:02:50.2728
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Gas Valve Timer
TIMEVALVE SMART helps users easily check and turn off the gas valves in home from anywhere. It detects dangerous temperature and alerts potential danger situations so that users can handle a problem. In addition, users can set time to lock gas valves against danger.

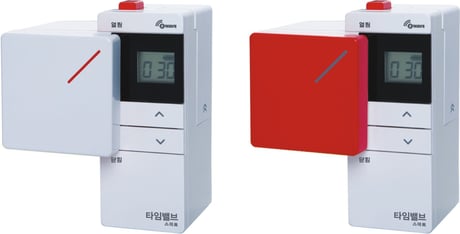

Product Picture
1 - Default Timeout
Valve Default Timeout in secondsSize: 4 bytes
Default: 2400
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 300 | 2400 | Valve Default Timeout in seconds |
3 - Remaining Time
Remaining Time to Close in secondsSize: 4 bytes
Default: 2400
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 35400 | Remaining Time to Close in seconds |
100 - Valve report interval
periodic valve state report interval in secondsSize: 4 bytes
Default: 86400
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 600 | 16777215 | periodic valve state report interval in seconds |
To enter learn mode(inclusion), press UP arrow for 5 seconds while the valve is open.
To enter learn mode(exclusion), press UP arrow for 5 seconds while the valve is open.
To reset, Press DOWN arrow for 5 seconds while the valve is open. Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
