SAMSUNG SDS
Window/Door Sensor
SHP-SB100Z
Notification Sensor
01
ZM5101
6.51.06
0x022E (558)
0x0004 (4)
0x0004 (4)
ZC10-15060013
2015-06-17 05:57:23.1144
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Window/Door sensor
Detecting Window/Door open Harmonious design concept with home interior

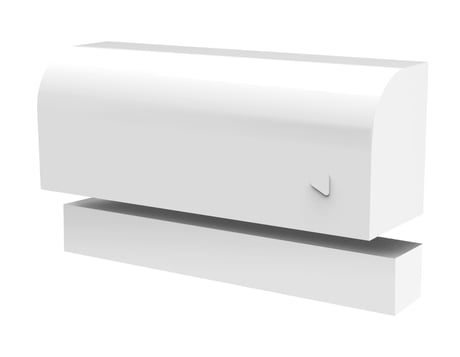

Product Picture
- Click [Add] icon in Z-Wave PC Controller Program - Press a Func_Button 1 time in SHP-SB100Z (Door Sensor) - If Inclusion Process is successful, LED is Blinking 3 times in SHP-SB100Z
- Click [Remove] icon in Z-Wave PC Controller Program - Press a Func_Button 3 times quickly in SHP-SB100Z - If Exclusion Process is successful, LED is Blinking 5 times in SHP-SB100Z
- wake up when push a Func Button - wake up when door sensor is detected
Device Factory Reset - Use this procedure only when he network primary controller is missing or otherwise inoperable - Press a Func_Button for 10 seconds in SHP-SB100Z - If Factory Reset Process is successful, LED is Blinking 1 time in SHP-SB100Z - Device Reset Locally notification is Transmitted
