Vision
CO Detector
ZS6301EU-5
Notification Sensor
02
ZM5202
6.51.06
0x0109 (265)
0x200F (8207)
0x0F04 (3844)
ZC10-15110003
2015-05-29 08:35:30.6068
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
The ZS6301EU-5 is a Z-WAVE enabled CO detector.
The ZS6301EU-5 is a Z-WAVE enabled CO detector which is designed to sense CO that comes into the detector's chamber and send Z-WAVE signal and warning sound (with audibility as 85dB at 3m) if it detects a certain density of CO. The detector is battery operated and includes the ability to detects the battery level and will report an alert signal if the battery is under certain low level. The sensitivity of its sensor is meet both UL217 and EN14604 standard. The ZS6301EU-5 also supports its firmware could updated over Z-WAVE network.

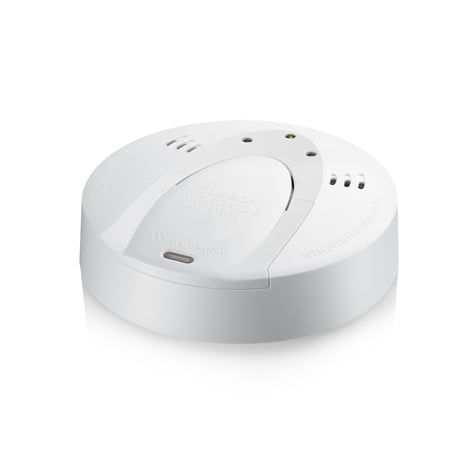

Product Picture
For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZS6301-5 to your controller. To get in the “inclusion” mode, the distance between detector and controller is suggested to be in one meter. By power on to get included for first time or press the test switch of ZS6301-5 once to be included. After be included, the red LED will go on.
For “Exclusion” from (removing from) a net work: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZS6301-5 from your controller. Press the test switch of ZS6301-5 once to be excluded.
To leave “Sleep” mode, please press the test switch once, the device will send “Wake Up Notification” after 10 seconds.
N/A
