Qubino Flush 1D relay
ZMNHN
On/Off Power Switch
01
ZM5202
6.51.06
0x0159 (345)
0x0002 (2)
0x0053 (83)
ZC10-15070017
2015-07-10 08:25:20.5826
N/A
Enhanced 232 Slave
Always On Slave
Qubino Flush 1D relay is used for switching On or Off the electrical device. Output contact is voltage free (dry contact), so also loads with different power supply can be connected to the module.
Qubino Flush 1D relay with voltage free (dry contact) output contact. This Z-Wave module is used for switching on or off the electrical device (e.g. light, fan, etc ...). The module can be controlled either through Z-wave network or through the wall switch. The module is designed to be mounted inside a “flush mounting box”, hidden behind a traditional wall switch. Module supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-wave network. Output contact is voltage free (dry contact), so also loads with different power supply can be connected to the module. FEATURES: - The module has the option to connect a digital temperature sensor - small dimensions (WxHxD) 41,8x36,8x15,4mm - power supply is 110 - 230 VAC ±10% 50/60Hz, 24-30VDC - Electrical consumption 0,4W

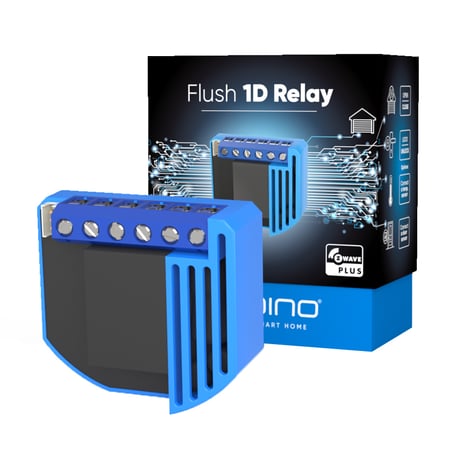

Product Picture
1 - Input 1 switch type
Defines the type of switch connected to Input 1Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | mono-stable switch type (push button) |
| 1 | 1 | bi-stable switch type |
2 - Input 2 contact type
Defines the type of switch connected to Input 2Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | NO (normally open) input type |
| 1 | 1 | 1 - NC (normally close) input type |
10 - Activate / deactivate functions ALL ON/ALL OFF
Support to activate / deactivate functions ALL ON/ALL OFF Flush 1D relay module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | ALL ON active, ALL OFF active |
| 0 | 0 | ALL ON is not active ALL OFF is not active |
| 1 | 1 | ALL ON is not active ALL OFF active |
| 2 | 2 | ALL ON active ALL OFF is not active |
11 - Automatic turning off output after set time
Support automatic turning off output after set time. When relay is ON it goes automatically OFF after time defined by this parameter. Timer is reset to zero each time the module receive ON command regardless from where it comes (push button, associated module, controller,..).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto OFF disabled |
| 1 | 32535 | 1 – 32535 = 1second (0,01s) – 32535 seconds (325,35s) Auto OFF enabled with define time, step is 1s or 10ms according to parameter nr.15 |
12 - Automatic turning on output after set time
Support automatic turning on output after set time When relay is OFF it goes automatically ON after time defined by this parameter. Timer is reset to zero each time the module receive OFF command regardless from where it comes (push button, associated module, controller,..).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto ON disabled |
| 1 | 32535 | 1 – 32535 = 1second (0,01s) – 32536 seconds (325,35s) Auto ON enabled with define time, step is 1s or 10ms according to parameter nr.15 |
15 - Automatic turning off / on seconds or milliseconds selection
Support automatic turning off / on seconds or milliseconds selection NOTE: This parameter is valid for both, turning on and turning off parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | seconds selected |
| 1 | 1 | milliseconds selected |
30 - Saving the state of the relay after a power failure
Support saving the state of the relay after a power failureSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Flush 1D relay module saves its state before power failure (it returns to the last position saved before a power failure) |
| 1 | 1 | Flush 1D relay module does not save the state after a power failure, it returns to "off" position. |
63 - Output Switch selection
Support output Switch selection Set value means the type of the device that is connected to the output. The device type can be normally open (NO) or normally close (NC).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When system is turned off the output is 0V (NC). |
| 1 | 1 | When system is turned off the output is 230V or 24V (NO). |
100 - Enable / Disable Endpoint I2 or select Notification Type and Event
Support Enable / Disable Endpoint I2 or select Notification Type and Event Enabling I2, means that Endpoint (I2) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. NOTE: After parameter change module has to be reincluded into the network for the setting to take effect!Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Home Security; Motion Detection, unknown location |
| 2 | 2 | Carbon Monoxide; Carbon Monoxide detected, unknown location. |
| 3 | 3 | Carbon Dioxide; Carbon Dioxide detected, unknown location. |
| 4 | 4 | Water Alarm; Water Leak detected, unknown location. |
| 5 | 5 | Heat Alarm; Overheat detected, unknown location. |
| 6 | 6 | Smoke Alarm; Smoke detected, unknown location. |
| 0 | 0 | Endpoint, I2 disabled |
110 - Temperature sensor offset settings
Defines temperature sensor offset settings Set value is added or subtracted to actual measured value by sensor.Size: 2 bytes
Default: 32536
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 32536 | 32536 | offset is 0.0C |
| 1 | 100 | value from 0.1C to 10.0C is added to actual measured temperature. |
| 1001 | 1100 | value from -0.1C to -10.0C is subtracted to actual measured temperature. |
120 - Digital temperature sensor reporting
Defines the digital temperature sensor reporting If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 1 | 127 | 0,1C – 12,7C, step is 0,1C |
Module Inclusion (Adding to Z-wave network) • Connect module to power supply (with temperature sensor connected - if purchased), • auto-inclusion (works for about 5 seconds after connected to power supply) or • press service button S for more than 2 second or • press push button I1 three times within 3s (3 times change switch state within 3 seconds). NOTE: When connecting temperature sensor to module that has already been included, you have to exclude module first. Connect the sensor and re-include the module.
Module Exclusion/Reset (Removing from Z-Wave network) • Connect module to power supply • bring module within maximum 1 meter (3 feet) of the main controller, • enable add/remove mode on main controller • press service button S for more than 6 second or • press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply. By this function all parameters of the module are set to default values and own ID is deleted If service button S is pressed more than 2 and less than 6 second module is excluded, but configuration parameters are not set to default values.
Please use this procedure only in the event that your network primary controller is missing or otherwise inoperable. If the service button S is pressed for more than 6 seconds the module will be reset to the factory defoult state.
