Brand
Advanced Control Technologies, Inc.
Name
ZRF113 - Isolated Contact Fixture Module
Part number
ZRF113
Device type
Not Z-Wave Plus
OEM Version
ZRF113 V5.1
Hardware platform
ZW0301
Z-Wave version
4.51
Manufacturer ID
0x0001 (1)
Product type ID
0x5246 (21062)
Product ID
0x3133 (12595)
Certificate number
ZC08-10090006
Certification date
0001-01-01 00:00:00
EAN barcode
N/A
Library type
Routing Slave
Role type
N/A
Description
- The relay on this device is isolated from the power line, so it can be used to switch any load, including low voltage. This can be used in areas where an X10 universal module may have been used. - The LED on the ZRF113 will turn on when the load attached is ON. The LED is user configured however to turn ON when the load attached is OFF, if so desired. - The ZRF113 supports the AS101 and AS001 auxiliary switch. - Max load 20 amps. - Supports Z-Wave 40Kbps speed - Signal (Frequency): 908.42 MHz
Z-Wave Features
Categories (2)
All Lighting Devices
On/Off Switches/Devices
Z-Wave Chip Series
300
Region (1)

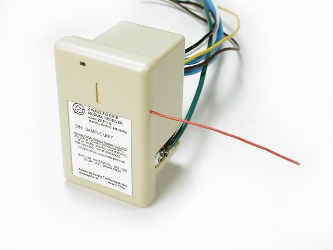

Product Picture as Published
0 / 0
No configuration parameters available.
