Westinghouse
Westinghouse RTS-PZ
9001.0
Door Lock Keypad
10
ZM5202
6.51.06
0x0217 (535)
0x0900 (2304)
0x0001 (1)
ZC10-15110002
2015-10-30 17:10:35.4792
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Z-Wave enabled deadlatch door lock with 1000 user’s PIN, access logging and scheduled access.
The RTS-PZ is perfect for security-sensitive business and government environments. Set access control rights for each individual user to each individual lock and upload these access rights in seconds. You can register users as PIN-code only on any lock or group of locks you define. The combination of large user capacity, audit trails, built-in scheduling system and weather- proof design makes this system unequaled in value compared to other products currently available.

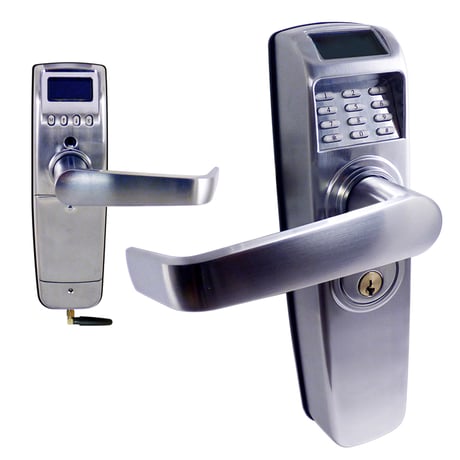

Product Picture
To include our device into a controller. 1.Perform 'Include' on the controller. 2.From the lock's main menu item ""7.Zwave"", select the ""ZwaveInclusion"" by using the arrow keys to scroll to it and then pressing 'M' to select it. After a few seconds, you should see ""Success"" on the lock.
To exclude our device from a controller . 1.Perform 'Exclude' on the controller. 2.From the lock's main menu item ""7.Zwave"", select the ""ZwaveExclusion"" option by using the arrow keeys to scroll to it and then pressing 'M' to sleect it. After a few seconds, you should see ""Success"" on the lock.
When accessing the lock simply press the # button to scan a fingerprint or enter your pincode directly then press the * button twice. To access the Main Menu press the M button on the inside unit. Any Z-wave communication will wake the unit and then execute any command from a paired controller.
If your controller fails or is replaced or if you need to perform a Factory reset on the device so that an inclusion may be performed again or with a new controller, Factory reset can be done on the device by selecting ‘ Hard Reset’ from the Main Menu on device’s display and pressing the 'M' button. When prompted to reset press the 'M' button on the unit and the device will display initializing. Once the reset is complete the display will return to the Main Menu. Note: When a Hard Reset is completed, the zwave node id is initialized to 0 and the device can't be controlled by zwave. In order to control the device again, the controller needs to include the device on zwave network.
• 1,000 user capacity • Multi-modal options with Secure PIN Code and mechanical key • Easy to read OLED screens • Z-Wave Plus 5202 chipset with integrated Z-Wave controller • Mesh network extends range of other devices • Operate stand alone or integrate server side • Capture, review, and transmit audit trail history • IP56 tested and dust proof design • Rugged, zinc cast enclosures • MS1 is an optional management software tool that allows you to administer an unlimited number of locks • FCC, CE, UL, ANSI, ROHS Certifications • ISO/TS, 16949, ISO 9001, ISO 14001 Compliant • 83% Made in America • 2 year warranty from date of purchase
