Ingersoll Rand - Nexia Home Intelligence
Nexia One Touch
NX1000
Wall Controller
01
ZM5202
6.51.06
0x0178 (376)
0x5343 (21315)
0x4735 (18229)
ZC10-15070012
2015-07-07 13:30:38.9702
N/A
Routing Slave
Portable Slave
The Nexia One Touch is a wall controller device that can act as a central scene controller or a traditional stand-alone scene controller.
The Nexia One Touch is a wall controller device that can act as a central scene controller or a traditional stand-alone scene controller. The Nexia One Touch contains up to 15 different scenes organized in 3 pages of screen where each page contains 5 scenes. The Nexia One Touch conveniently runs up to 15 modes and automations with the tap of a button.

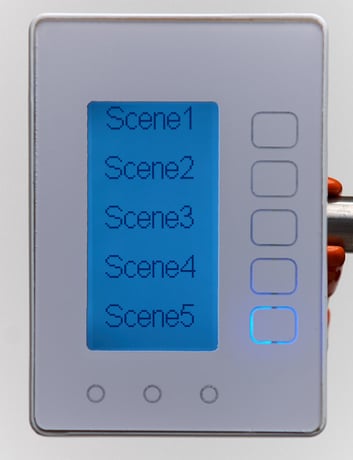

Product Picture
1 - Reserved
ReservedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reserved |
2 - Button 1 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
3 - Button 2 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
4 - Button 3 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
5 - Button 4 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
6 - Button 5 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
7 - Button 6 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
9 - Button 8 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
10 - Button 9 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
11 - Button 10 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
12 - Button 11 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
13 - Button 12 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
14 - Button 13 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
15 - Button 14 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
16 - Button 15 Type
Configuration for the type of button and which commands it will send when pressed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat |
17 - Reserved
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 |
18 - Reserved
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 |
19 - Reserved
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 |
20 - Touch Calibration
Button touch calibration sensitivity levelSize: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | 1 = Least Sensitive 10 = Most Sensitive |
21 - Screen Contrast
Screen contrast levelSize: 1 byte
Default: 7
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | 1=less contrast, 10=more contrast |
22 - Reserved
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reserved |
23 - Button LED Level
Button LED Brightness LevelSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | 1=10% 10 = 100% |
24 - Backlight Level
Backlight Brightness LevelSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | 1=10% 10 = 100% |
25 - Scene Button Press Backlight Timeout
Backlight timeout after a scene (rectangular) button pressSize: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 15 | seconds |
26 - Page Button Press Backlight Timeout
Backlight timeout after a page (round) button pressSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 15 | seconds |
27 - Reserved
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 |
28 - Screen Timeout
Screen timeout - number of minutes after the last button press till the screen goes blankSize: 1 byte
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disabled |
| 1 | 240 | minutes |
29 - Screen Timeout Primary Page
Page to default to after a screen timeoutSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | 0 = no change, 1=page1, 2=page2, 3=page3 |
30 - Battery Stat Shutdown Threshold
Battery status shutdown thresholdSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 20 | % |
31 - Battery Radio Cutoff Threshold
Battery % Radio Cutoff ThresholdSize: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 40 | % |
32 - Battery LOWBATT Indicator Threshold
Low Battery % Indicator ThresholdSize: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 50 | % |
33 - Battery Threshold Value for Midlevel
Battery % threshold for midlevel indicatorSize: 1 byte
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 80 | % |
1. Put primary controller into inclusion mode 2. Press any button to wake the One Touch 3. Press and hold the middle page button (round button) until the Installer Setup menu appears 4. Select the 'Z-Wave' button 5. Select the 'Include' button 6. Include will fast flash and then SUCCESS will display briefly
1. Put primary controller into exclusion mode 2. Press any button to wake the One Touch 3. Press and hold the middle page button (round button) until the Installer Setup menu appears 4. Select the 'Z-Wave' button 5. Select the 'Exclude' button 6. Exclude will fast flash and then SUCCESS will display briefly
When the backlight and/or screen is off, the first page (round) button press will wake the One Touch causing it to send a Wakeup Notification report. The One Touch has a 6 hour default wakeup interval and will send the Wakeup Notification once that interval expires. WAKEUP_INTERVAL_CAPABILITIES_REPORT Min Wake Up Interval : 4200 seconds Max Wake Up Interval: 86400 seconds Default Wake Up Interval: 21600 seconds Wake Up Interval Step: 10
Please use Factory Reset as a last resort option only as all network settings and associations will be cleared. 1. Press any button to wake the One Touch 2. Press and hold the middle page button (round button) until the Installer Setup menu appears 3. Select the 'System' button 4. Select the 'Factory Reset' button 5. Select 'Yes' to proceed with the factory reset
