FIBARO Flood Sensor
FGFS-101
Notification Sensor
02
ZM5202
6.51.06
0x010F (271)
0x0B01 (2817)
0x1002 (4098)
ZC10-15080018
2015-08-20 12:57:43.3142
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
FIBARO Flood Sensor is a universal, battery or VDC powered, Z-Wave compatible, flood and temperature sensor, designed to be placed on a floor or on a wall.
FIBARO Flood Sensor is a universal, Z-Wave compatible, flood and temperature sensor. Device can be battery (ca. 2 years battery life) or VDC powered (12 or 24 VDC). FIBARO Flood Sensor is designed to be placed on the floor or on a wall with a flood sensor probes extended by connected wire. Flood alarm is sent to Z-Wave network devices or additionally to any alarm system controller, through opening a NC contact. The device has built-in temperature sensor, monitoring temperature of e.g. floor, LED indicator, acoustic alarm, and is equipped with a tilt sensor, reporting tilt or movement e.g. when someone has taken the Sensor from its original location. LED diode signals flood, operating mode or the Z-Wave network communication range. FIBARO Flood Sensor is sink-proof, which means it drifts on the water surface and keeps on sending alarm signal in case of substantial inundation of water. Flood Sensor is compatible with any Z-Wave or Z-Wave+ Controller. https://www.youtube.com/watch?v=8JRxUoHbEN8

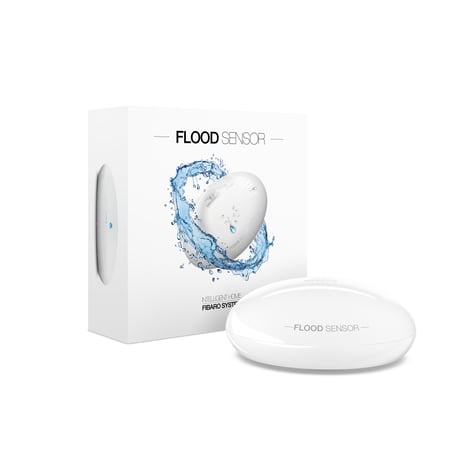

Product Picture
1 - Alarm cancellation delay
Determines time period, in seconds, by which a Flood Sensor will retain the flood state after the flooding itself, has ceased. Sensor will keep on reporting flooding to the main controller. This parameter settings do not affect acoustic and visual alarms, which turn off immediately after flooding ceases.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3600 | in seconds, each 1s |
2 - Acoustic and visual signals On/Off in case of flooding
The parameter allows for deactivation visual and acoustic alarm. Parameter allows for increasing a battery life. Settings changes will not affect the Sensors communication with the main controller - commands to association groups, alarms and reports will still be sent.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | acoustic and visual alarms inactive |
| 1 | 1 | acoustic alarm inactive, visual alarm active |
| 2 | 2 | acoustic alarm active, visual alarm inactive |
| 3 | 3 | acoustic and visual alarms active |
7 - Forced dimming level / roller blind opening level, when sending turn on / open command to 2nd association group devices
In case of alarm frames, alarm priority is determined. Available settings:Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | forced level |
| 255 | 255 | turn a device on |
9 - Alarm cancelling or turning a device off (Basic) command frame deactivation
Allows for deactivating device turn off and alarm cancellation functions for the devices assigned to 2nd and 3rd association group). Setting the parameter’s value to 0 results in stopping BASIC SET = 0 and ALARM WATER = 0 control frames from being sent. After sending flood alarm report the device will keep on reporting flooding after the it has ceased. Such a state can be cancelled by choosing alarm cancellation from the MENU, marked with green indicator colour.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | alarm (flooding) cancellation inactive |
| 1 | 1 | alarm (flooding) cancellation active |
10 - Temperature measurement interval
Time interval, in seconds, between consecutive measurements of temperature done by built-in temperature sensor and battery level. If a temperature differs from previously reported by a value determined in parameter 12, new temperature value is reported. If a battery level changes, the device reports a battery status change. The parameter is relevant when using a Flood Sensor in a battery power mode - longer time interval means less frequent communication resulting in extended battery life. After consecutive FAILED and SUCCESSFUL communication attempts, the Sensor will go to standby mode.Size: 4 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | in seconds |
12 - Temperature measurement hysteresis
Determines a minimum temperature change value (insensitivity level), resulting in a temperature report being sent to the main controller, according to the Parameter 10 settings. Please refer tp colour/Decimal value table in manual.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1000 | each 0.01 |
50 - Low temperature alarm threshold
The parameter stores a temperature value, below which visual indicator blinks with a colour determined by a Parameter 61 settings. By default the visual indicator blinks blue.Size: 2 bytes
Default: 1500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -10000 | 10000 | each 0.01 |
51 - High temperature alarm threshold
The parameter stores a temperature value, above which visual indicator blinks with a colour determined by the Parameter 62 settings. By default the visual indicator blinks red. Note! The main controller does not interpret negative numbers as decimals. That’s why read value may be different than entered. Negative numbers are coded in U2 standard. Please refer to Decimal/Hexadecimal (U2)/Value in controller table in manualSize: 2 bytes
Default: 3500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -10000 | 10000 | each 0.01 |
61 - Low temperature alarm indicator colour
Parameter stores RGB colour value.Size: 4 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 16777215 |
62 - High temperature alarm indicator colour
Parameter stores RGB colour value. A main controller interprets colours as a sum of it component colours value. Each colours value is a number from 0 to 255. Note! A main controller interprets colours as a sum of it component coulours value. Each colours is a number from 0 to 255. Please refer to colour/Decimal value table in manual.Size: 4 bytes
Default: 16711680
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 16777215 |
63 - Managing a visual indicator under standard operation
Parameter determines visual indicator’s operation. Set to 0 turns the indicator off, saving a battery life.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Visual indicator does not indicate the temperature |
| 1 | 1 | Visual indicator indicates the temperature (blink) every Temperature Measurement Interval (Parameter 10, constant current and battery) or Wake Up Interval (battery mode) |
| 2 | 2 | Visual indicator indicates the temperature continuously, only in constant power mode |
73 - Temperature measurement compensation
Parameter stores a temperature value to be added to or deducted from the current temperature measured by internal temperature sensor in order to compensate the difference between air temperature and temperature at the floor level.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -10000 | 10000 |
74 - Alarm frame sent to 1st and 4th Association Group activation (MOVEMENT_TAMPER / BUTTON_TAMPER)
The device is able to turn on alarms resulting from sensor’s vibrations e.g. when the sensor is moved, or the TMP button released.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | tamper alarms inactive |
| 1 | 1 | button tamper alarm active |
| 2 | 2 | button tamper alarm active |
| 3 | 3 | button and movement tampers alarm active |
75 - Visual and audible alarms duration
The user can silence the Flood Sensor. Because the Sensor’s alarm may last for a long time, it is possible to turn off visual and audible alarm signalling to save battery. The parameter determines time after which alarm will become quiet - still active but the device will go into battery saving mode. Visual or acoustic alarm will be reactivated after time specified in the parameter 76. When alarm status ceases, alarm will be turned off immediately. The value of 0 means visual and acoustic alarms are active indefinitely. In battery power mode the Sensor will never go to sleep which may shorten battery life significantly. Note! Parameter 75 is ignored when parameter 2 is set to 0. Available settings: 0 - alarms active indefinitely 1-65535 - time in secondsSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | alarms active indefinitely |
| 1 | 65535 | time in seconds |
76 - Alarm frame / Basic Set frame retransmission time when retaining flood alarm
Parameter determines a time period after which an alarm frame will be retransmitted. The value of 0 cancels an alarm frame retransmission. Note! In case a time period set in parameter 76 is shorter then the one specified in parameter 75, the device will not quiet the alarm, it will remain active.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | retransmission inactive |
| 1 | 65535 | time in seconds |
77 - Flood sensor functionality turned off
Allows for turning of the internal flood sensor. Tamper and built in temperature sensor will remain active.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default flood sensor operation (flood detection, reactions) |
| 1 | 1 | Built in flood sensor TURNED OFF (does not change its state in the main controller, does not send Alarms and Basic Set frames with flood state changes. Always visible in the main controller as turned off) |
78 - Associations in Z-Wave network security mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st “Lifeline “group.Size: 1 byte
Default: 7
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | none of the groups sent as secure |
| 1 | 2 | 2nd group Flood Control sent as secure |
| 2 | 3 | group Flood Alarm sent as secure |
| 4 | 4 | group Tamper sent as secure |
1) Open the cover by turning it counter-clockwise. 2) Remove battery blocker. 3) Locate the sensor nearby the main Z-Wave controller. 4) Set the main Z-Wave controller into learning mode (see main controller’s operating manual). 5) Quickly, triple click the TMP button located inside the casing. 6) Wait for the device to be included into the system. Successful inclusion will be confirmed by the controller. 7) Close the cover by turning it clockwise. 8) Place the sensor onto a surface prone to flooding. Three electrodes underneath the device should evenly touch the surface.
1) Open the cover by turning it counter-clockwise. 2) Make sure the sensor is connected to a battery or a DC power supply. 3) Locate the sensor nearby the main Z-Wave controller. 4) Set the main Z-Wave controller into learning mode (see main controller’s operating manual). 5) Quickly, triple click the TMP button located inside the casing. 6) Wait for the device to be excluded from the system. Successful exclusion will be confirmed by the controller.
FIBARO Flood Sensor will wake up at a defined time interval and will ALWAYS try to communicate with the main controller. There is a possibility to wake up the device manually by clicking the TMP button.
1) Open the cover by turning it counter-clockwise. 2) Make sure the sensor is connected to a battery or a DC power supply. 3) Press and hold the TMP button for 15-20 seconds until LED glows yellow to confirm entering into 4th menu option. 4) Release and click the TMP button to start reset procedure. 5) The LED glowing red and then turning off will confirm successful reset. Reset completion will be also confirmed by an acoustic signal. Note! Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable.
