SAMSUNG SDS
Motion sensor
SHP-SR100Z
Notification Sensor
01
ZM5101
6.51.06
0x022E (558)
0x0005 (5)
0x0005 (5)
ZC10-15060016
2015-06-19 06:14:13.9464
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Motion sensor
Motion sensor lets you know when movement is detected in your home.

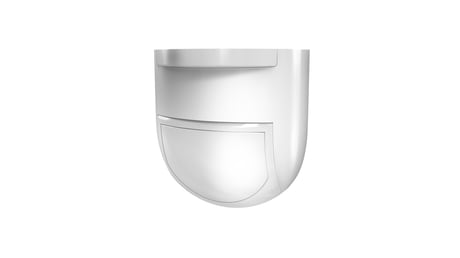

Product Picture
Click [Add] icon in Z-Wave PC Controller Program - Press a Func_Button 1 time in SHP-SR100Z (PIR Sensor) - If Inclusion Process is successful, LED is Blinking 3 times in SHP-SR100Z
Click [Remove] icon in Z-Wave PC Controller Program - Press a Func_Button 3 times quickly in SHP-SR100Z - If Exclusion Process is successful, LED is Blinking 5 times in SHP-SR100Z
- Press a Func_Button or when the moving is detected, wake up occurs.
Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable. - Press a Func_Button for 10 seconds in SHP-SR100Z - If Factory Reset Process is successful, LED is Blinking 1 time in SHP-SR100Z - Device Reset Locally notification is Transmitted
