Vision
In-wall Two Relay
ZL7435EU-5
On/Off Power Switch
02
ZM5101
6.51.06
0x0109 (265)
0x2017 (8215)
0x1719 (5913)
ZC10-15110013
2015-06-22 05:39:49.51
N/A
Enhanced 232 Slave
Always On Slave
ZL7435EU-5 is a two relays on/off control module for controlling 2 different electric appliances' on and off.
* Super Mini Size: 39.5x 50 x 19 mm * Operating Range: Up to 100 feet line of sight * Operating Temp.: -15°C~ 60°C (5°F~140°F) * Operating Voltage: 100VAC~240VAC * Resistive Load: 550W 110 VAC 1100W 220 VAC

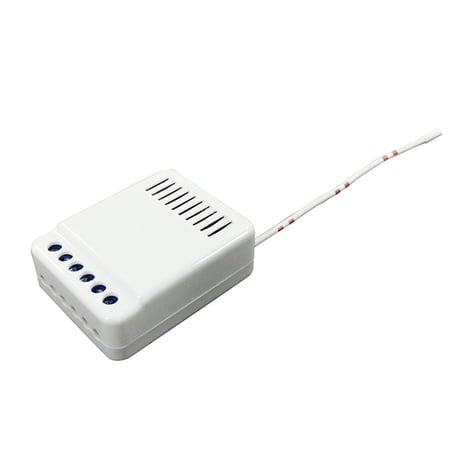

Product Picture
1 - Button Mode Switching
This parameter sets the mode for the wall switch inputs.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switch Mode (Default) |
| 1 | 1 | Toggle Mode |
For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZL 7435EU-5 to your controller. To get in the “inclusion” mode, the distance between module and controller is suggested to be in one meter. Press 3 times within 2 seconds or turn on the wall switch 3 times within 2 seconds (or press toggle switch 3 times) to be included.
For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZL 7435EU-5 from your controller. Press 3 times within 2 seconds or turn on the wall switch 3 times within 2 seconds (or press toggle switch 3 times) to be excluded.
Factory Default Reset: Power off first, press Program Switch and power on till 10 seconds, ZL7435EU-5 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)
