Jasco Products Company
In-Wall Smart Fan Control
14314.0
Fan Switch
HW: 255
ZM5202
6.51.06
0x0063 (99)
0x4944 (18756)
0x3138 (12600)
ZC10-15060022
2015-06-19 11:34:40.3068
N/A
Enhanced 232 Slave
Always On Slave

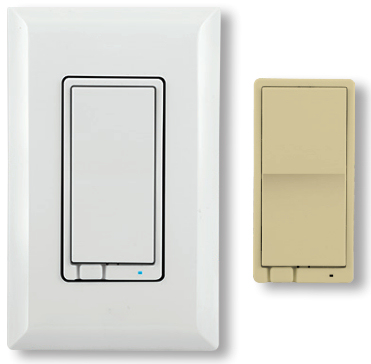

Transform any home into a smart home with the Jasco Z-Wave Smart Fan Control The in-wall fan control replaces your ceiling fan switch and features three-speed control.
Transform any home into a smart home with the Jasco Z-Wave Smart Fan Control. The in-wall fan control easily replaces any standard in-wall switch remotely controls a ceiling fan in your home and features a three-speed control system. Your home will be equipped with ultimate flexibility with the Jasco Z-Wave Smart Fan Control, capable of being used by itself or with up to four GR add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The Jasco Z-Wave Smart Fan Control is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls! Z-Wave is the world’s largest ecosystem of interoperable smart home products. Z-Wave lighting controls provide an easy-to-install and affordable system to control lighting and small appliances in your home. Add GE Z-Wave lighting controls to a Z-Wave certified gateway to access and control your home from anywhere in the world using your smartphone, tablet or computer as a home automation command center. Never worry if you accidentally left the lights on because you can turn them off remotely or program your lights to go on/off at specific times. Create customized lighting scenes for any occasion such as a “go to sleep” scene or a “movie night” scene. Give the illusion that someone is home by programming the lights to turn on/off while you are away—perfect for deterring crime and adding additional security!"
3 - LED Light
When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | LED on when on |
| 2 | 2 | LED always off |
| 0 | 0 | Default |
Linking your device 1. Follow the instructions for your Z-wave certified controller to include a device to the Z-wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the wireless smart switch(rocker) to include it in the network. Note: Your controller may need to be within 10 feet of the device to be included. 3. Once your controller has confirmed that the device has been included, refresh the Z-wave network to optimize performance. Please reference the controller’s manual for instructions.
Note: To exclude and reset the device, follow the instructions provided by your Z-Wave controller.
Quickly press ON (Top) button three (3) times and then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
