Jasco Products Company
In-Wall Smart Outlet
14313/ZW1001
On/Off Power Switch
HW: 255
ZM5202
6.51.06
0x0063 (99)
0x4952 (18770)
0x3039 (12345)
ZC10-15060021
2015-06-19 11:40:31.7436
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the GE Z-Wave Smart Lighting Control Smart Outlet.
Transform any home into a smart home with the GE Z-Wave Smart Lighting Control Smart Outlet. The GE Z-Wave Smart Outlet enables wireless control of on/off functions from the Z-Wave controlled outlet, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. The duplex receptacle includes a blue LED indicator light to easily locate the receptacle in a dark room. The receptacle replaces your current electrical outlet, uses your existing wiring and provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a standard pass-through AC outlet for other electrical appliances. The receptacle requires in-wall installation with hardwired connections. Take control of your home lighting with GE Z-Wave Smart Lighting Controls! Z-Wave is the world’s largest ecosystem of interoperable smart home products. Z-Wave lighting controls provide an easy-to-install and affordable system to control lighting and small appliances in your home. Add GE Z-Wave lighting controls to a Z-Wave certified gateway to access and control your home from anywhere in the world using your smartphone, tablet or computer as a home automation command center. Never worry if you accidentally left the lights on because you can turn them off remotely or program your lights to go on/off at specific times. Create customized lighting scenes for any occasion such as a “go to sleep” scene or a “movie night” scene. Give the illusion that someone is home by programming the lights to turn on/off while you are away—perfect for deterring crime and adding additional security!

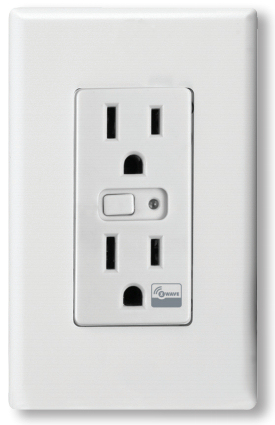

Product Picture
3 - LED Light
When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED Light off when Z-Wave turned On |
| 1 | 1 | LED Light on when Z-Wave turned On |
| 2 | 2 | LED Always Off |
1. Follow the instructions for your Z-wave certified controller to include a device to the Z-wave network. 2. Once the controller is ready to include your device, press and release the Program Button to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-wave network to optimize performance.
1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart dimmer to exclude it from the network.
N/A
N/A
1. Press and hold the button for at least 3 seconds. The LED light will blink 5 times to confirm. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
N/A
