LG Uplus
Smart Plug
SPD-01
On/Off Power Switch
HW: 17
ZM5101
6.51.06
0x018C (396)
0x0042 (66)
0x0001 (1)
ZC10-15070005
2015-07-01 08:03:07.2022
N/A
Enhanced 232 Slave
Always On Slave
This device measures the amount of electricity and has the ability to power on or off the connected load
The apparatus can remotely power to the load connected to the device on / off and can be used to measure the power of the load connected to the device. Also inform you your electricity usage kindly by remote is a smart plugs.

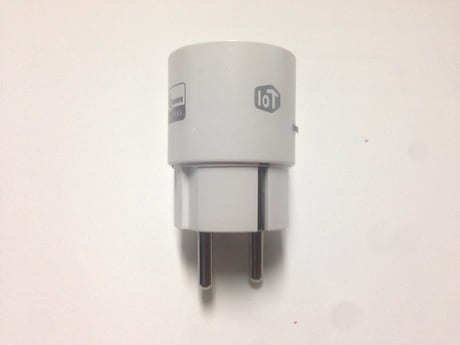

Product Picture
1 - Standby Power setting and function enable/disable
Total 4 byte : 3 byte + 1 byte - 3 Byte : Standby Power Setting ( 0x000000 (0.00 Watt) ~ 0x493E0 (3000.00 Watt) ) - 1 Byte : Standby Power Function Enable/Disable ( 0x00 or 0x01) Default - 3 byte : 0.00W( 0x000000) / 1byte : 0 (0x00) For example, if Standby Power Function is "Enable" and the usage of Electricity is over the Standby Power Setting value, “Smart Plug” cut off the power Supply.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3000 | 0.00 Watt ~ 3000.00 Watt |
2 - Periodic Measurement Value Transmission
Start or Stop for the periodically measured value transmission of the Power usage Default : 1 (0x01) - Function Enable Value - 0 (0x00) : Disable - 1 (0x01) : EnableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Disale/Enable |
3 - Start / Stop Power accumulation Usage Calculation
Start / Stop Power accumulation Usage Calculation Default : 1 (0x01) - Function Enable Value - 0 (0x00) : Disable(Stop) - 1 (0x01) : Enable(Start) Enable / DisableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Disable/Enable |
4 - Report when the connected Device is being used or not.
Report when the connected Device is being used or not. (User can know the Device's using status) Default : 1 (0x00) - Function Disable Value - 0 (0x00) : Disable(Stop) - 1 (0x01) : Enable(Start) ※ if not set up the standby power, it does not function.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Disable/Enable |
5 - This sets the periodic measurement value transmission rate.
This sets the periodic measurement value transmission rate. The rate set is in increments of 10 minutes. For example, if setting value = 2, Transmission Time interval = 2 * 10 = 20 minutes. Default : 6 ( 60min ) Value - 1(0x01) : 10 min ~ 144 (0x90) : 1440 minSize: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 144 | 10min~1440min |
After mounting the UZB controller to your PC and run the PC Controller program you can click the Add button in the PC Controller program. Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet will Inclusion in the network controller, while the flashing red button LED Smart Plug.
After mounting the UZB controller to your PC and run the PC Controller program you can click the Remove button in the PC Controller program. Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet will Exclusion in the network controller, while the flashing red button LED Smart Plug.
Press the button on the Smart Plug for more than 10 seconds after you plug the Smart Plug into a power outlet will Exclusion in the network controller, while the flashing red button LED Smart Plug. And all the variables are initialized. ※ Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable
