SAMSUNG SDS
IoT Hub
SHP-GS100M
Central Controller
01
SD3503
6.51.06
0x022E (558)
0x0007 (7)
0x0007 (7)
ZC10-15070006
2015-07-06 07:18:28.2962
N/A
Static Controller
Central Static Controller
IoT Hub
IoT Hub makes your home secure at anytime and from anywhere. A total security system which services intrusion detection, access management, and gas valve control, makes your life and home secured ever than before

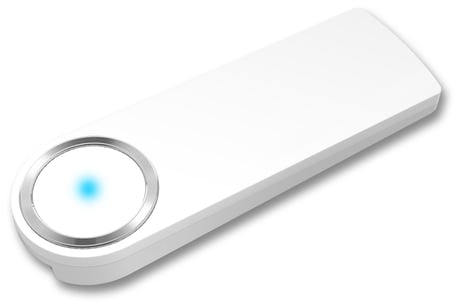

Product Picture
1. Select ‘Controller Learn Mode Request’. 2. Insert value(5:Start, 6:Stop). 3. Press Confirm button.
Use this procedure only when the network primary controller is missing or otherwise inoperable. 1. Check the White or Blue LED of Top. White LED means that SHP-GS100M is Normal WiFi connection and has no slave device. Blue LED means that SHP-GS100M is Normal WiFi connection and has slave devices. 2. Press Factory Default Reset Button during 10 seconds.
1. Restart Main App. 2. Press Exit Button. 3. Press Menu Button. 4. Press Settings Button. 5. Press Inclusion / Exclusion Settings Button. 6. Press Inclusion Button. 7. Press Start Inclusion Button. 8. SHP-GS100M enters into Inclusion Mode for 60 seconds and it trys to include a device. 9. When a device is included to SHP-G100M, it displays that. If you want to include more, press include more. 10. Enter Alias Name & Press Confirm. * Alias Name is 8 characters or less.
1. Press Menu Button. 2. Press Settings Button. 3. Press Inclusion / Exclusion Settings Button. 4. Press Exclusion Button. 5. Press Confirm Exclusion or Cancel Button. 6. Press Confirm Exclusion Button 7. SHP-GS100M enters into Exclusion Mode for 60 seconds and it trys to exclude a device. 8. When a device is excluded to SHP-G100M, it displays that. If you want to exclude more, press exclude more. 9. Press Confirm Button.
