NodOn
NodOn® Soft Remote
CRC-3-6-0X
Remote Control - Multi Purpose
01
ZM5202
6.51.06
0x0165 (357)
0x0002 (2)
0x0002 (2)
ZC10-15100015
2015-07-29 07:32:31.1
N/A
Portable Controller
Portable Controller
The NodOn® Soft Remote controls any compatible receivers Z-Wave® or Z-Wave Plus®. It can operate on its own (“Standalone” Mode) or as gateway’s assistant (“Gateway” Mode). The product integrates a LED as an intuitive feedback tool.
The NodOn® Soft Remote controls any compatible receivers Z-Wave® or Z-Wave Plus®, such as the Smart Plug NodOn®. It can address, directly, up to 4 groups of 8 devices and sent up to 16 different scenes to a Home Automation Gateway. This controller can operate on its own (“Standalone” Mode) or as gateway’s assistant (“Gateway” Mode). The product integrates a LED, which give an intuitive feedback for each operation you perform. Based on an innovative technology, the NodOn® Soft Remote is only powered with a CR2032 battery, offering 2 years’ autonomy. The NodOn® Soft Remote is based on brand new 500 series Z-Wave® module from Sigma Designs®, and supports all the new features of Z-Wave Plus® standard: Longer range (up to 40 meters indoor), lower power consumption, higher data rate transmission, and many more new features.

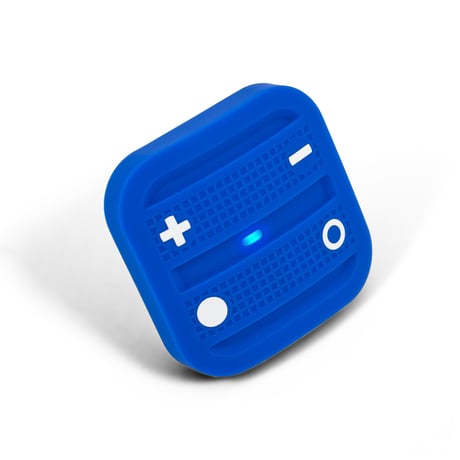

Product Picture
1 - Buttons 1 & 3 Profile
To set-up the profie of buttons 1 & 3Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | SCENE. Product sends “Central Scene Notification” Commands or “Scene Activation” Commands. |
| 1 | 1 | MONO. Button 1 is not paired with button 3. |
| 2 | 2 | DUO. Button 1 is paired with button 3. |
2 - Buttons 2 & 4 Profile
To set-up the profie of buttons 2 & 4Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | SCENE. Product sends “Central Scene Notification” Commands or “Scene Activation” Commands. |
| 1 | 1 | MONO. Button 1 is not paired with button 3. |
| 2 | 2 | DUO. Button 1 is paired with button 3. |
3 - Scene Type
To choose the way of sending Scene to the gatewaySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Use “CENTRAL SCENE” Commands. |
| 1 | 1 | Use “SCENE ACTIVATION” Commands. |
4 - Button 1 Configuration
To set-up the how button 1 behaves, when set in MONO ProfieSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Single Press sends “Basic Set” Command to associated devices in Group 2. |
| 1 | 1 | Single Press sends broadcast “Switch All On” Command. |
| 2 | 2 | Single Press sends broadcast “Switch All Off” Command. |
5 - Button 2 Configuration
To set-up the how button 2 behaves, when set in MONO ProfieSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Single Press sends “Basic Set” Command to associated devices in Group 3. |
| 1 | 1 | Single Press sends broadcast “Switch All On” Command. |
| 2 | 2 | Single Press sends broadcast “Switch All Off” Command. |
6 - Button 3 Configuration
To set-up the how button 3 behaves, when set in MONO ProfieSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Single Press sends “Basic Set” Command to associated devices in Group 4. |
| 1 | 1 | Single Press sends broadcast “Switch All On” Command. |
| 2 | 2 | Single Press sends broadcast “Switch All Off” Command. |
7 - Button 4 Configuration
To set-up the how button 4 behaves, when set in MONO ProfieSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Single Press sends “Basic Set” Command to associated devices in Group 5. |
| 1 | 1 | Single Press sends broadcast “Switch All On” Command. |
| 2 | 2 | Single Press sends broadcast “Switch All Off” Command. |
8 - Led Management
How to set up LED behaviourSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 3 | Combined behaviors of 0x01 and 0x02 modes. |
| 0 | 0 | Led does not acknowledge button action and does not acknowledge result of radio command sent. |
| 1 | 1 | When the end-user performs a Single press, Double press or Hold Press on a button, led blinks blue to acknowledge the button action. |
| 2 | 2 | When the end-user sends a controlled command: “Basic Set” Command or “Central Scene Notification” Command or “Multilevel Switch Stop Level Change” Command. Led blinks GREEN to acknowledge transmission success or blinks RED to acknowledge transmission failed. |
1- Place your home automation gateway into “Inclusion” Mode. To do so, please refer to your gateway’s user guide. 2- Simultaneously push on buttons 1 and 2, during 1 second. The LED glows in pink to confirm the selection. 3- Push on button 1. The LED blinks in pink to confirm your choice. 4- The LED blinks in green to confirm the procedure
When the product in ""Gateway"" mode, any action on button will send a wake up notification to the gateway.
Simultaneously push on buttons 3 and 4, during 1 second. The LED will blink red and green to validate the factory reset. A factory reset will completely delete the memory of the Soft Remote and restore all parameters to default value. In ""Standalone"" Mode, make sure to remove all the devices added or associated in the Soft Remote's network before performing a factory reset. In ""Gateway"" Mode, use the factory reset procedure only when the primary controller (i.e the Gateway) is missing or defective. Reset the Soft Remote does not mean that it has been removed from the primary controller memory. Remove the Soft Remote (through the primary controller) before performing a factory reset.
Association, in ""Standalone"" mode is performed in 3 steps: 1- Push 3 times (quickly) on the button 1 to activate the ""Association” Mode. The LED glows in blue. 2- Choose which button will control your device. • A short press on one of the buttons of the Soft Remote (1, 2, 3 or 4) will activate the MONO Profile. The pressed button will then control your device. • A long press on the button 1 will activate the DUO Profile, combined with the button 3. The button 1 (ON) and button 3 (OFF) will then control your device. • A long press on the button 2 will activate the DUO Profile, combined with the button 3. The button 2 (ON) and button 4 (OFF) will then control your device. The LED blinks in blue to confirm your choice. 3-Place the device you want to associate in “Learning” Mode. To do so, please refer to your device’s user guide. The LED of the Soft Remote blinks green to confirm the association process Careful: In case of a too long association process or others problems during the process, the LED will blink red (Timeout). Please restart the procedure. Once the association is validated, your Soft Remote is able to control your device. Different actions are possible.
1- Push 3 times (quickly) on the button 3. The LED blinks in blue. 2- Place the device you want to add in “Learning” Mode. To do so, please refer to your device’s user guide. The LED blinks in green to confirm the inclusion. Note: If you wish to include and associate a device, please refer to ""Other Special Features""
1- Push 3 times (quickly) on the button 2. The LED blinks in blue. 2- Place the device you want to remove in “Learning” Mode. To do so, please refer to your device’s user guide. The LED blinks in green to confirm the exclusion.
