Jasco Products Company
Plug-in Dual Smart Dimmer With 3.4A USB Charging
28174.0
Light Dimmer Switch
5.2
ZM5202
6.51.06
0x0063 (99)
0x5044 (20548)
0x3131 (12593)
ZC10-15095001
2015-07-30 06:22:47.2116
N/A
Enhanced 232 Slave
N/A

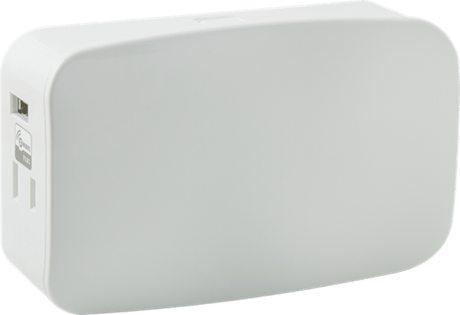

Transform any home into a smart home with the Jasco Z-Wave Plug-in Dual Smart Dimmer With 3.4A USB Charging. This module enable wireless control on on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more!
Transform any home into a smart home with the Jasco Z-Wave Plug-in Dual Smart Dimmer With 3.4A USB Charging. This module enable wireless control on on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more! Use the dimmer control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. This module also enables you to have independent or simultaneous control of each outlet! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!
3 - LED Light
When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | LED light on when on |
| 2 | 2 | LED Light off at all times |
7 - Endpoint 1 when receiving a dim command
Number of steps or levelsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | number of steps or levels |
| 0 | 0 |
8 - Endpoint 1 when receiving a dim command
Timing of stepsSize: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Timing of steps |
| 0 | 0 |
9 - End point 2 when receiving a dim command
number of steps or levelsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | number of steps or levels |
| 0 | 0 |
10 - Endpoint 2 when receiving a dim command
Timing of stepsSize: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | timing of steps |
| 0 | 0 |
11 - When receiving an all on or all off command
To adjust all command speedSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | To adjust all command speed |
| 0 | 0 |
12 - When receiving an all on or all off command
To adjust all command timerSize: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | To adjust all command timer |
| 0 | 0 |
Adding your device to a Z-wave network: 1. Follow the instructions for your Z-wave certified controller to include the smart dimmer to the Z-wave network. 2. Once the controller is ready to include your smart dimmer, single press and release the manual/program button on the smart dimmer to include it in the network. 3. Once your controller has confirmed that the smart dimmer has been included, refresh the Z-wave network to optimize performance. Please reference the controller/gateway’s manual for instructions. Now you have complete control to turn your lamp ON/OFF or set Dim levels according to groups, scenes, schedules and interactive automations programmed by your controller. If your Z-wave certified controller features Remote Access, you can now control your lighting from your mobile devices
To exclude and reset the device: 1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart dimmer to exclude it from the network.
To return your dimmer to factory defaults: 1. If plugged in, unplug the Dimmer from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the dimmer into a receptacle. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
