GE
Plug-in Smart Switch (Single Plug)
28169 (ZW4103)
On/Off Power Switch
HW: 255
ZM5202
6.51.06
0x0063 (99)
0x5052 (20562)
0x3038 (12344)
ZC10-15080010
2015-08-17 14:34:32.7014
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Plug-in Smart Switch.
Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Plug-in Smart Switch. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!

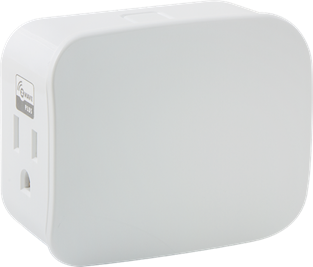

Product Picture
3 - LED Light
When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED Light on when Z-Wave turned OFF (Default) |
| 1 | 1 | LED Light on when Z-Wave turned On |
| 2 | 2 | LED Light Always Off |
1. Follow the instructions for your Z-wave certified controller to include the device to the Z-wave network. 2. Once the controller is ready to include your smart switch, single press and release the manual/program button on the smart dimmer to include it in the network. 3. Once your controller has confirmed that the smart switch has been included, refresh the Z-wave network to optimize performance.
1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart switch to exclude it from the network.
1. If plugged in, unplug the Switch from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the switch into a receptacle. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
