Domitech Products, LLC
Smart LED Light Bulb
ZRKSW
Light Dimmer Switch
HW: 255
ZM5202
6.51.06
0x020E (526)
0x4C42 (19522)
0x3133 (12595)
ZC10-15080024
2015-08-23 22:20:40.6116
N/A
Enhanced 232 Slave
Always On Slave
Z-Wave LED Retrofit Kit with Z-Wave radio. Fully dimmable, 60W equivalent, consumes 8.5W of power, A19 screw in bulb with frosted soft light
Z-Wave LED Retrofit Kit with Z-Wave radio. - Control lights remotely and save energy - Compatible with smart home systems supporting Z-Wave - 65 Watt equivalent light (650 lumens) - Consumes only 8.5 watts of power - 5000K Day light with frosted glass - Instant ON and fully dimmable - Functions as a Z-Wave signal repeater - Very simple to include in your network - Z-Wave Plus certified

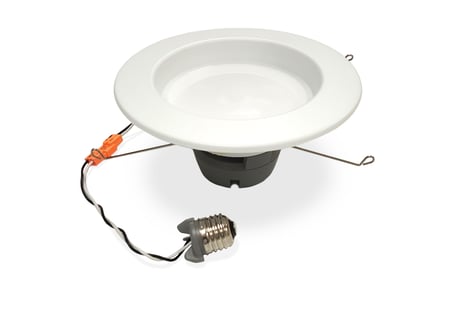

Product Picture
1 - Dim level when the light bulb is turned On
You may select the Dim level whenever the light is turned back ON to be either full brightness (100% dim level) or be the same as the last dim setting when the light was previously ON.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | The brightness level will maintain same dim level as the last setting when the dt Smart Bulb is turned ON again. |
| 0 | 0 | The brightness level will be resume to full brightness when the dt Smart Bulb is turned ON every time. |
9 - Dimming/Brightening Step Level
You may change the dimming step level when you adjust the brightness by your controller/gateway.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | A low value provides gradual dimming and brightening, a high values makes it change rapidly. |
10 - Dimming/Brightening Step Timing
You may change the dimming speed quicker or slower by changing Parameter 10's value.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | When the value is low, the step timing is quick. When the value is high, the step timing is slow. |
1. Turn Off power to the light bulb socket 2. Screw in the light bulb 3. Place your network controller into inclusion mode by following the controller manufacturer's instructions 4. Turn On power to the light bulb. If successful, the LED light bulb will flash twice to indicate successful inclusion. 5. If the controller/gateway shows it was a fail, repeat the procedure. Note: If Inclusion still fails after the 2nd attempt, you need to first RESET the dt Smart Bulb before repeating the above steps.
1. Turn off power to the light bulb socket 2. Follow the network controller instruction to place your network controller into exclusion mode to remove the dt light bulb from the network. 3. After being prompted by the network controller, turn On power to the light bulb. If successful, the LED light bulb will flash twice to indicate successful inclusion.
You may manually reset the light bulb as follows: 1. Flick the wall switch “OFF-ON” 4 times within 4 seconds. 2. The dt Smart Bulb will flash twice after Reset is successful. Use this procedure only in the event that the network primary controller is lost or otherwise inoperable.
