Everspring
on/off mini plug
AN180-2
On/Off Power Switch
02
SD3502
6.51.02
0x0060 (96)
0x0004 (4)
0x0007 (7)
ZC10-15090003
2015-09-02 11:07:33.7344
N/A
Enhanced 232 Slave
Always On Slave
The On/Off Mini Plug is a Z-WaveTM enabled device which is fully compatible with any Z-WaveTM enabled network
The On/Off Mini Plug is a Z-WaveTM enabled device which is fully compatible with any Z-WaveTM enabled network. Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-WaveTM enabled networks. Inclusion of this unit on other manufacturer’s Wireless Controller menu allows remote operation of the unit and the connected load. The On/Off Mini Plug is designed to control the on/off status of appliances load in your house. At 220-240V voltage, this Plug can support up to 1500W resistive.

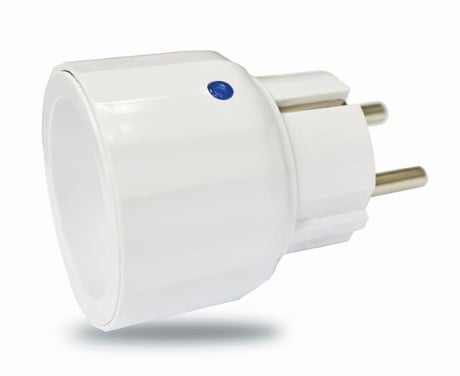

Product Picture
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode.
1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold it until LED is off (about 5 seconds). 3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes. 4. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
