Aeotec
Garage Door Controller Gen5
ZW062-C
Secure Barrier Add-On
HW: 62 FW: 1.11
ZM5101
6.51.06
0x0086 (134)
0x0003 (3)
0x003E (62)
ZC10-15090012
2015-09-08 10:43:20.371998
N/A
Enhanced 232 Slave
Always On Slave
Aeon Labs Garage Door Controller is a smart and wireless Garage Door Control system, you can control the garage door to open, close, or stop moving via wireless signal on your gateway client or phone application.
Aeon Labs Garage Door Controller is a smart and wireless Garage Door Control system, you can control the garage door to open, close, or stop moving via wireless signal on your gateway client or phone application. The Garage Door Controller allows you to configure different alarm sounds to indicate the door’s action. Each action alarm sound can be customized. To change or update new alarm sounds for the Garage Door Controller, connect the Garage Door Controller to your PC host with a USB cable and download your sound files to the flash memory (128 MB) of the Garage Door Controller. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. It is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade.

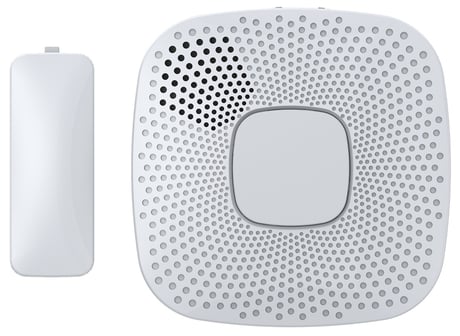

Product Picture
32 - Configure the default startup ringtone.
This parameter is used to set the default startup ringtone for the Garage Door Controller.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable the startup ringtone. |
| 1 | 100 | Enable and select a startup ringtone for the Garage Door Controller. |
34 - Calibration the Sensor.
This parameter is used to calibrate the Sensor. Calibration Steps: 1. Let the garage door move to full close position. 2. Send this parameter (0x22) with “value=1” to Garage Door Controller. 3. Let the garage door move to full open position. 4. Let the garage door move to full close position after the step 3 is completed. After the step 4 is completed, all calibration steps are complete.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Enable calibration. |
35 - Set the timeout of Sensor calibration.
This parameter is used to set the timeout of Sensor calibration in parameter 34. The unit is second.Size: 2 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | Set the timeout of calibration |
36 - Get the number of alarm music.
This parameter is used to get the the number of alarm music that are stored in the flash memory card. Note: this parameter only will use the configure get command to get the number of alarm music.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Get the number of alarm music. |
37 - Configure the alarm mode when the garage door is opening.
This parameter is used to set an alarm mode when the garage door is opening..Size: 4 bytes
Default: 524560
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | Configure the flash frequency of the alarm LED, there are 10 levels can be set. |
| 16777215 | 16777215 | Disable the alarm mode. |
| 65535 | 65545 | Configure the volume of alarm sound, there are 10 levels can be set. |
| 256 | 356 | Select an alarm sound, there are 4 alarm sounds in the flash memory card can be selected. |
| 16777216 | 16777216 | Enable the alarm mode. |
38 - Configure the alarm mode when the garage door is closing.
This parameter is used to set the alarm mode when the garage door is closing.Size: 4 bytes
Default: 524806
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 16777216 | 16777216 | Enable the alarm mode. |
| 1 | 10 | Configure the flash frequency of the alarm LED, there are 10 levels can be set. |
| 65535 | 65545 | Configure the volume of alarm sound, there are 10 levels can be set. |
| 16777215 | 16777215 | Disable the alarm mode. |
| 256 | 356 | Select an alarm sound, there are 4 alarm sounds in the flash memory card can be selected. |
39 - Configure the alarm mode when the garage door is in Unknown position.
This parameter is used to set the alarm mode when the garage door is in "Unknown" position.Size: 4 bytes
Default: 525060
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | Configure the flash frequency of the alarm LED, there are 10 levels can be set. |
| 65535 | 65545 | Configure the volume of alarm sound, there are 10 levels can be set. |
| 16777215 | 16777215 | Disable the alarm mode. |
| 16777216 | 16777216 | Enable the alarm mode. |
| 256 | 356 | Select an alarm sound, there are 4 alarm sounds in the flash memory card can be selected. |
40 - Configure the alarm mode when the garage door is in closed position.
This parameter is used to set the alarm mode when the garage door is in closed position.Size: 4 bytes
Default: 525314
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 16777216 | 16777216 | Enable the alarm mode. |
| 1 | 10 | Configure the flash frequency of the alarm LED, there are 10 levels can be set. |
| 256 | 356 | Select an alarm sound, there are 4 alarm sounds in the flash memory card can be selected. |
| 65535 | 65545 | Configure the volume of alarm sound, there are 10 levels can be set. |
| 16777215 | 16777215 | Disable the alarm mode. |
41 - Configuration report for the tamper switch State
This parameter is used to report the state when the Sensor is installed on the garage door or removed from the garage door. Note: The state would be reported via configuration report CC.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The Sensor is installed on the garage door. |
| 15 | 15 | The Sensor is removed from the garage door. |
42 - Configuration report for the battery state of Sensor
This parameter is used to report the battery state of Sensor. Note: The state would be reported via configuration report CC.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 15 | 15 | Battery is in low battery state. |
| 0 | 0 | Battery is in normal state. |
43 - Start playing or Stop playing the ringtone.
This parameter is used to audition or test the product's ringtone.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -1 | -1 | Stop playing the ringtone. |
| 1 | 100 | Start playing the ringtone that you select. |
44 - Test the volume of the current ringtone
This parameter is used to audition or test the product's ringtone volume.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | There are 10 volume levels can be set for testing. |
45 - Get the environment temperature
This parameter is used to get the temperature where near to your Garage Door Controller.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 500 | The available temperature range is 0 to 50 Celsius |
47 - Define the function of Button- and Button+.
This parameter is used to define the function of Button- and Button+.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Pressing it once, the Button+ and Button- are defined to be the control item of Next and Previous. Press and hold it, the Button+ and Button- are defined to be used to increase and decrease the volume. |
| 0 | 0 | Pressing it once, the Button+ and Button- are defined to be used to increase and decrease the volume. Press and hold it, the Button+ and Button- are defined to be the control item of Next and Previous. |
80 - Enable/Disable to send notifications to associated devices to associated devices.
This parameter is used to enable/disable to send notifications to associated devices (in Group 1) when the state of Doorbell Gen5’s load is changed. (0=Send nothing, 1=Send hail CC, 2=Send barrier operator report CC).Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | Send BARRIER OPERATOR Report Command |
| 0 | 0 | Send Nothing (Disabled) |
| 1 | 1 | Send HAIL Command |
241 - Pair the Sensor with Garage Door Controller
This parameter is used to pair the Sensor with Garage Door Controller. Note: 1. This procedure should only be used when the complimentary Sensor is missing or inoperable and you have another new Sensor that would be paired with your Garage Door Controller. 2. When the pairing is started, the Network LED will blink slowly, at this time, you just need to press the Temper Switch back of the Sensor once. If the Network LED change to be solid, which means the pairing is successful. Otherwise, repeat the steps.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1431655681 | 1431655681 | Start the Sensor pairing mode. |
252 - Enable/Disable Lock Configuration
This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | All configuration parameters are configurable. |
| 1 | 1 | All configuration parameters are not configurable (Locked). |
255 - Reset to default factory setting
This parameter is used to reset product to default factory setting. (There are just 2 values can be used).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Reset all configuration parameters to default setting. |
| 1431655765 | 1431655765 | Reset the product to default factory setting and be excluded from the Z-wave network. |
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Z-Wave button that you can find on the product's housing.
Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Z-Wave button that you can find on the product's housing.
Press and hold the Z-Wave button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is missing or inoperable.
1. Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 2. Support alarm sound updating.
