Ecolink Intelligent Technology
Ecolink Door Window Sensor
DWZWAVE2.5-ECO
Notification Sensor
2
ZM5202
6.51.06
0x014A (330)
0x0001 (1)
0x0002 (2)
ZC10-15090018
2015-09-17 20:44:56.1464
N/A
Routing Slave
Reporting Sleeping Slave
Ecolink door/window sensor, with external contact input, is designed for maximum range and battery life. This family of sensors from Ecolink use the new 500 series Z-Wave components with Z-Wave Plus certification. For convenience each door/window sensor comes with BOTH brown AND white cases to better match interior colors.
Ecolink Z-Wave Door/Window Sensor -Z-Wave Plus certified -Frequency 908.42MHz -Range up to 100 feet -Battery life up to 3 years with 50 openings/closing per day -CR123A Lithium battery -Input on the sensor for non-powered external contact -BOTH brown and white cases included in each box

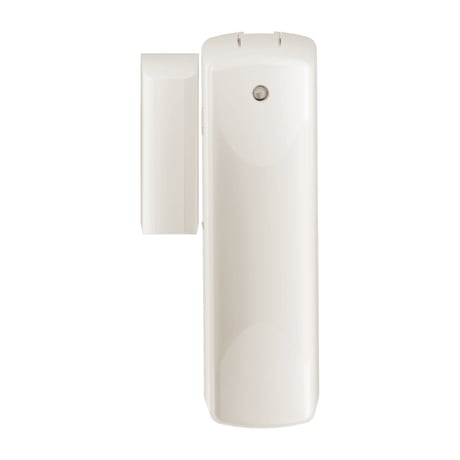

Product Picture
Once the controller is in inclusion mode, either remove the battery isolation tab, OR insert the battery to power up the sensor.
Once the controller is in exclusion mode, either remove the battery isolation tab, OR insert the battery to power up the sensor.
If sensor is sleeping, remove the cover to wake up.
To restore this sensor to factory default settings, follow the instructions in the manual to exclude this sensor from the Z-Wave network. Upon completion of removal from the network the sensor will restore itself to factory default settings automatically. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Has external contact input. This contact is in PARALLEL to the magnetic reed switch, meaning one or the other can be used.
