Ecolink Intelligent Technology
Ecolink Motion Detector
PIRZWAVE2.5-ECO
Notification Sensor
2
ZM5202
6.51.06
0x014A (330)
0x0004 (4)
0x0001 (1)
ZC10-16020001
2016-02-12 15:17:59.8848
N/A
Routing Slave
Reporting Sleeping Slave
The Ecolink Z-Wave Plus Pet Immune Motion Detector enabled device transmits upon detection of movement. The sensor sensitivity can be adjusted from small pet to medium sized pets. Additional settings enable to the Motion Detector to act as an occupancy sensor.
• For indoor use only • Operating frequency: 908.42 MHz • Operating range: Up to 100 feet (30.5 meters) line-of-sight • Operating temperature: 0˚C to 49˚C, 32˚F to 120˚F (ambient temperature) • Detection radius: 39 feet (see detection region diagram) • Detection angle: 45 degrees in either direction from the sensor’s center • Battery type: 3V Lithium CR123A • Battery life: approximately 3 years • Passive Infrared (PIR) based technology

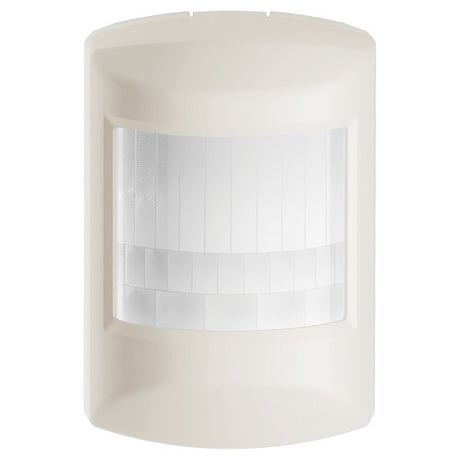

Product Picture
Once the controller is in inclusion mode, simply remove the battery isolation tab, OR insert the battery, OR press the small button on the back of the Motion Detector.
Once the controller is in exclusion mode, simply remove the battery isolation tab, OR insert the battery, OR press the small button on the back of the Motion Detector.
If the sensor is asleep, simply remove the cover to wake up the sensor for configuration.
To restore this sensor to factory default settings, follow the instructions for product exclusion which will reset the sensor upon completion of the process. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
