Ecolink Intelligent Technology
Ecolink Garage Door Tilt Sensor
TILTZWAVE2.5-ECO
Notification Sensor
2
ZM5202
6.51.06
0x014A (330)
0x0004 (4)
0x0003 (3)
ZC10-16030002
2016-03-08 11:42:18.0636
N/A
Routing Slave
Reporting Sleeping Slave
The Ecolink Z-Wave Plus Garage Door Tilt Sensor monitors the status of a sectioned garage door to communicate the current status of open or closed.
• For indoor use only • Operating frequency: 908.42 MHz • Operating range: Up to 100 feet (30.5 meters) line-of-sight • Operating temperature: 0˚C to 49˚C, 32˚F to 120˚F (ambient temperature) • Battery type: 3V Lithium CR123A • Battery life: 5 to 8 years depending upon operating conditions

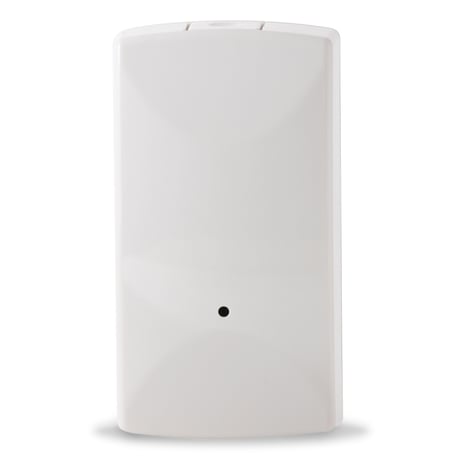

Product Picture
Once the controller is in inclusion mode, remove the battery pull tab OR insert the battery to power up the sensor.
Once the controller is in exclusion mode, remove the battery pull tab OR insert the battery into the sensor to initiate power up.
Simply remove the sensor cover to wake up for configuration.
To reset the sensor to factory default, place the controller in exclusion mode and then insert the battery into the sensor to initiate power up. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
