Mercury
IoT Hub
MC01-507L
Central Controller
01
ZM5202
6.51.06
0x022D (557)
0x0100 (256)
0x0001 (1)
ZC10-15100006
2015-10-07 09:51:04.1386
N/A
Bridge Controller
Central Static Controller
MC01-507 is universal controller which can control the several control group device.
IoT Hub is universal controller which can control several control groups. This IoT Hub can support full function of Notification Sensor, Door Lock and Gas Valve products made for KT. Other products made as general Z-Wave plus standard can be controlled with limited function.

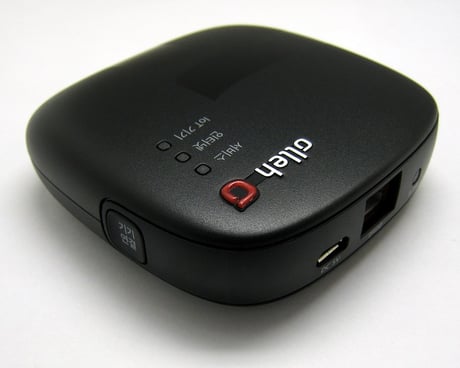

Product Picture
1. Select Controller Learn Mode Request command in the Emulator. 2. Click Kafka Send button. 3. Enter the parameter value. 4. Click Confirm button.
Press Reset button more than 5 seconds.
You can add the device by either hardware button or application. - Hardware button : Press the Add/Remove button (Start Z-Wave LED blink) - Application : 1. Click Add the device button. 2. Click Start button. (Start blink Z-Wave LED) 3. MC01-507L put into inclusion mode to add to the device. When finished adding the device, the Z-Wave LED is green light ON. (Stop blink Z-Wave LED) 4. The home screen of the app shown the added device. 5. Click the device icon. The screen detail view about information of added-device and can control device on this screen.
You can remove the device by either hardware button or application. - Hardware button : Press the Add/Remove button(Start Z-Wave LED blink) - Application : 1. Click Menu button on the screen detail view. 2. Click Remove the device button. 3. Click Remove button. (Start blink Z-Wave LED) 4. MC01-507L put into exclusion mode and it will remove the device. When finished removing the device, the Z-Wave LED is green light OFF. (Stop blink Z-Wave LED) 5. The home screen of the app shows the removed device.
