Everspring
wireless dimmer plug
AD147-2
Light Dimmer Switch
02
SD3502
6.51.02
0x0060 (96)
0x0003 (3)
0x0003 (3)
ZC10-15100008
2015-10-12 13:58:20.429
N/A
Enhanced 232 Slave
Always On Slave
The mini Dimmer Plug is designed to control the on/off status of lighting and appliance load in your house.
The mini Dimmer Plug is designed to control the on/off status of lighting and appliance load in your house. The unit also provides dimmer function which is only applicable to light bulbs. At 220-240V voltage, this Dimmer Plug can support connected load of 6W - 250W.

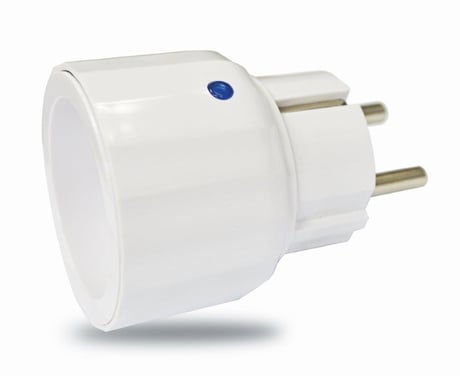

Product Picture
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode.
1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold it until LED is off (about 5 seconds). 3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes. 4. Use this procedure only in the event that the network primary controller is missing, or otherwise inoperable
