Z-Wave.Me
10 Year Smoke Detector and Siren
9402.0
Notification Sensor
HW: 1 FW: 1.00
ZM5202
6.51.06
0x0115 (277)
0x0004 (4)
0x0003 (3)
ZC10-16015002
2015-12-08 11:02:48.3292
N/A
Enhanced 232 Slave
Listening Sleeping Slave
EN 14604 certified 10 Year Smoke Detector with built in Z-Wave controllable siren function

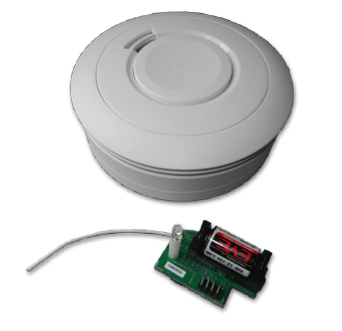

This products consists of a standard high-quality photo electric Smoke detector with a pluggable Z-Wave wireless interface module. The Smoke detector will also work as a stand alone product and is certified by VDS as '10 year Smoke Detector' The smoke chamber of the detector has a stainless steel reel with antistatic plastic chamber. A button allows on-device test of smoke chamber, electronics and battery. The device also offers a built-in self test and an electronic smoke chamber test to avoid the use of test aerosol. A low battery warning will last for 30 days but full function of the detector is guaranteed during this time. The Z-Wave module allows to report the smoke and low battery alarm wirelessly to a central controller. The detector can also be used as a wireless siren for alarm system or other applications.
1 - Siren alarm sequence interval
The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the interval in seconds.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 6 | 129 | seconds |
| 0 | 0 |
2 - Siren alarm tone length
The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the sound versus silence within this interval. Please make sure this value is always smaller (shorter time) than parameter 1 that defines the whole sequence.Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | seconds |
| 0 | 0 |
3 - Value of On-Command
This value is sent as BASIC Set to Association Group 3 when an Smoke Alarm occurs.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 0 | 0 |
4 - Value of Off-Command
This value is sent as BASIC Set to Association Group 3 when an Smoke Alarm is cleared.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 0 | 0 |
To include the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second
To exclude the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second
To reset the device keep the button pushed for 10 seconds. After 5 seconds the led starts flashing and after another 5 seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable.
