TELE System
TELE System GetMagic
G513V1
Gateway
0.01
ZM5304
6.51.06
0x0223 (547)
0x0001 (1)
0x0002 (2)
ZC10-15110009
2015-11-10 12:32:26.483
N/A
Static Controller
Central Static Controller

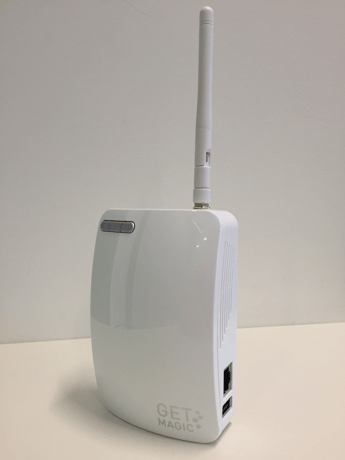

GetMagic is a home gateway, which allows users to add/include Z-Wave devices and bridge that information to other IP based devices.
GetMagic is a home gateway, which allows users to add/include Z-Wave devices and bridge that information to other IP based devices. It runs a local state machine which is triggered either by Z-Wave devices or time or status messages created by the user. The state machine can apply actions in the Z-Wave devices. GetMagic can be controlled via 100Mbit Ethernet or WiFi to the house network and connected via the local router to the cloud service. The cloud service allows the user to control the GetMagic gateway from outside the house and give access to the local Z-Wave devices. The cloud service is essential, but the user can run the local control after it is setup even without internet access.
To enable the GetMagic Gateway to receive information from another controller, start learn mode. To initiate learn mode press and hold button 1 from 15 to 20 seconds. When controller enters learn mode it will lose all Z-Wave devices that were previously included. Controller replication is implemented at minimum level and it is enabled by placing the controller in the learn mode. To include GetMagic Gateway to another controller network, start inclusion on the inclusion controller and start Learn mode on GetMagic gateway by pressing and holding button 1 from 15 to 20 seconds. Controller will ignore any basic command class commands from devices.
The Button 3 (the furthest away from the antenna) is used for reset, network reset and factory reset. The gateway reset is done by holding down button from 1 to 5 seconds. During this period LED will blink at 1 second rate. Gateway reset will restart the system without affecting the previously created configuration. Resetting network configuration is done by holding down the button from 5 to 15 seconds. During this period LED will blink with rate 1/4 second. The factory reset is operated by holding down button from 15 to 30 seconds. When factory reset operation is selected, the LED will blink and rate 1/10 second. If button remains pressed for more than 30 seconds, nothing happens.
In order to add devices for inclusion in Z-Wave network, the user must hold down button 1 (the closest to the antenna) from 1 to 5 seconds to open Z-Wave network. During this period the button LED will blink with rate of 1 second. Alternatively, the user can use the “Open network” functionality present at the mobile app. When the network is open for inclusion, the LED will stop blinking and turn on. To add Z-Wave devices during this period, the user must also pair the devices, according to their specific instructions related with the inclusion in the Z-Wave networks. The procedure for adding controller device is the same as for other devices. The network is closed by holding down button from 5 to 10 seconds during which time the LED will blink with 1/4 second rate. When the network is closed, the LED will turn off.
Removing device for exclusion is available when button is hold down from 10 to 20 seconds during which time the LED will blink at 1/10 second rate. Or optionally it can be done using mobile application from “Home setup”. To do it from mobile application press “Home setup” option on main menu and open gateway options menu by using long press on gateway icon (see 2.4). Press “Edit” option and proceed to last step where device management is done. On this screen select “Exclude device” option from settings menu in top right corner. The procedure for removing controller device is the same as for other devices.
