Climax Technology
Carbon Monoxide Detector
CO-8ZW
Notification Sensor
HW: 1 FW: 1.03:01.02
ZM5202
6.51.06
0x018E (398)
0x0003 (3)
0x0009 (9)
ZC10-15115004
2015-11-29 15:45:33.3852
N/A
Enhanced 232 Slave
N/A
The CO-8 ZW carbon monoxide detector uses electrochemical sensor technology to detect the presence of carbon monoxide to concentration levels.
The CO-8 ZW carbon monoxide detector uses electrochemical sensor technology to detect the presence of carbon monoxide to concentration levels as low as 30 ppm. The detector has a built-in siren to make audio alerts when alarms occur.

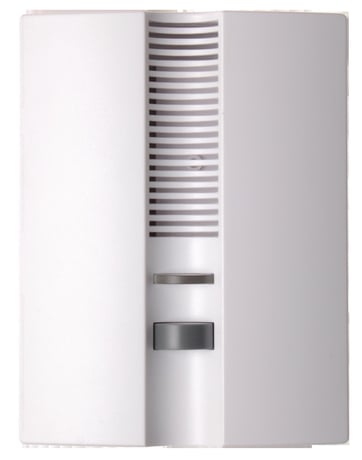

Product Picture
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. -Insert the 3 “AA” batteries into the battery compartment connecting the correct polarity as shown on the battery compartment lid. -CO-8 will emit a 2-tone beep. -Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual). -Within 1.5 seconds, press the Function Button 3 times. CO-8 will emit a 2-tone beep. -Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process. -If the sensor has already been included (learnt) into another Z-Wave Gateway/Control Panel, or if the sensor is unable to be learnt into the current Z-Wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control Panel.
The Carbon Monoxide Detector must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device. Exclusion Mode -Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). -Within 1.5 seconds, press the Function Button 3 times and the Carbon Monoxide Detector will be removed from the Z-Wave network.
This function uses the Z-Wave Wake Up Command Class. The Wake Up Command Class allows the battery-powered Carbon Monoxide Detector to notify the Control Panel/Gateway that it is awake and ready to receive any queued commands. The wake up interval time is programmed automatically according to Control Panel’s setting when The Carbon Monoxide Detector is included. The recommended setting of the wake up time is 60 minutes above.
Factory Reset (Only use factory reset when network Control Panel/Gateway is missing or inoperable). -Press and hold the Function Button of the Carbon Monoxide Detector for 10 seconds to factory reset.
