Building 36
Building 36 Temperature Sensor
B36-S10
Multilevel Sensor
1.0
ZM5202
6.51.06
0x0190 (400)
0x0003 (3)
0x0001 (1)
ZC10-16010010
2016-01-19 12:16:32.8044
N/A
Enhanced 232 Slave
Reporting Sleeping Slave

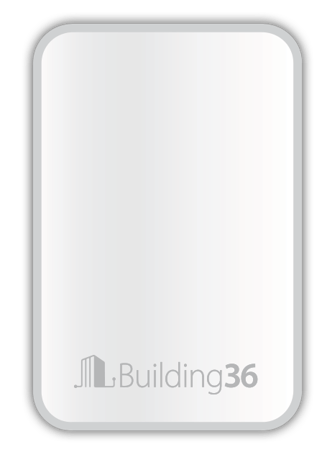

Battery powered Z-Wave temperature sensor.
Battery powered indoor Z-Wave temperature sensor. Sense temperature in any room in the home.
1 - Wake Up Period
Number of seconds the sensor will stay in the Wake up state following a button press. The sensor will go to sleep if it receives a wake up no more information frame.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 32768 | Seconds to stay awake following button press |
| 0 | 0 |
2 - Low Battery Level
Low Battery Report threshold.Size: 2 bytes
Default: 1755
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1000 | 2500 | Battery level |
| 0 | 0 |
3 - Temperature Reporting Threshold
The minimum temperature difference required to send a new ambient temperature report.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Tenths of a degree Fahrenheit. A value of 10 would be 1.0F. |
| 0 | 0 |
4 - Configuration Bitmask
Configuration bitmask for various device configuration settings. Bit 0 - reserved. Bit 1 - If set to 1, sensor will send unsolicited temperature reports. Bits 2 to 15 - reservedSize: 2 bytes
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | If zero, sensor will not send unsolicted temperature reports |
| 2 | 2 | If Bit 1 is set, sensor will send unsolicited temperature reports when the temperature changes. |
5 - Battery Reporting Interval
The number wakeup intervals between autonomous battery reports.Size: 2 bytes
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Number of wake up intervals between autonomous battery reports. The wake up interval is set in the Wake Up Command Class. |
| 0 | 0 |
6 - Temperature Checking Interval
The number of seconds between temperature readings.Size: 2 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 255 | The number of seconds between temperature readings |
| 0 | 0 |
7 - Temperature Reporting Interval
The number wakeup intervals between autonomous temperature reports. These interval reports should be sent regardless of the setting of the temperature reporting threshold.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | The number of wake up intervals between autonomous temperature reports. If this value is zero, autonomous temperature reporting based on wake up interval is disabled. |
| 0 | 0 |
8 - Temperature Calibration Offset
Adjust reported temperature by +/- 10 degrees Fahrenheit for calibration.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -100 | 100 | Tenths of a degree Fahrenheit. A value of 10 would be 1.0F. |
| 0 | 0 |
9 - Mandatory Temperature Reporting Interval
Temperature will be reported regardless of differential from threshold.Size: 2 bytes
Default: 7200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 60 | 64800 | The number of seconds between temperature reports. |
| 0 | 0 |
Put the Z-Wave controller into add mode (refer to controller documentation for more information). Press the button on the sensor to add to the Z-Wave network. The LED on the sensor will go solid white when the sensor has been successfully added.
Put the Z-Wave controller into remove mode (refer to the controller documentation for more information). Press the button on the sensor to remove from the Z-Wave network. The LED on the sensor will blink white when the sensor has been successfully removed.
The temperature sensor will send wake up notifications when the button is pressed and the temperature sensor is already included in a Z-Wave network. It also sends wake up notifications based at time intervals specified in the wake up set command.
NOTE: Only reset the sensor to factory default when the primary controller is missing or inoperable. Press and hold the button for 15 seconds. Release the button after 15 seconds and the LED will blink rapidly when the sensor has been reset to factory default.
