Aeotec
Doorbell Gen5
ZW056-B
Siren
HW: 38 FW: 1.11
ZM5101
6.51.06
0x0086 (134)
0x0204 (516)
0x0038 (56)
ZC10-15110018
2015-11-24 22:58:00.7044
N/A
Enhanced 232 Slave
Always On Slave
Aeon Labs Doorbell Gen5 is a doorbell Z-Wave wireless device that when heard the doorbell music is playing it lets you know someone is knocking at the door.
Aeon Labs Doorbell supports playing MP3 music files with a press of this doorbell. It has a 128MB flash memory that can store up to 800 ringtones. The volume can be adjusted manually via short press on the Volume Button, also you can switch the doorbell sound to the next via long press on the Volume Button. You may change/update your doorbell ringtone at any point in time you want by connecting your Doorbell to your PC to update the sound track on your Doorbell’s flash memory. There is a small Wireless Button, which can trigger the doorbell on the other side of the wall to play the selected doorbell music when pressed. It also act as a repeater that forward Z-Wave command messages to destination nodes if the originating controller is out of range from the destination node. By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices. Also a tool that can be programmed, scheduled, controlled and communicated with from anywhere in the world.

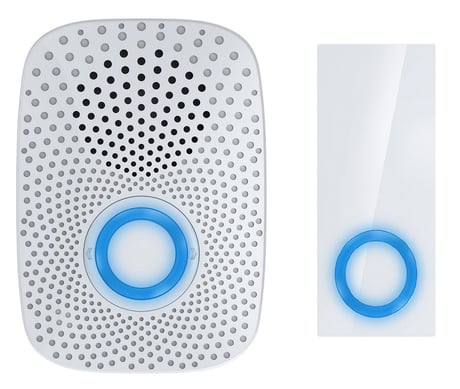

Product Picture
View configuration parameters (13)
2 - Set the repetitions for playing doorbell ringtone.
Set the repetitions of playing doorbell ringtone. Note: If the time of playing doorbell ringtone is more than 20s, the volume of ringtone will be reduced to silence no matter how many repetitions of doorbell ringtone are set.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | The range of repetition is 1 to 100. |
5 - Set the default doorbell ringtone.
Set the default doorbell ringtone.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Specify the ringtone as default. |
6 - Select a ringtone to play.
Select a ringtone to play.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Stop playing |
| 1 | 100 | Play the specified ringtone. |
7 - Control items
Control items.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | PLAY item. |
| 2 | 2 | STOP item. |
| 3 | 3 | PAUSE item. |
| 4 | 4 | NEXT item. |
| 5 | 5 | PREVIOUS item. |
8 - Set the volume of ringtone.
Set the volume of ringtone for your Doorbell.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | Set the volume level of 0 to 10. |
10 - Define the functions of “Button -” and “Button+”.
Define the functions of “Button -” and “Button+” for your Doorbell.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | “Button -” is Previous, “Button+” is Next. |
| 1 | 1 | Swap functions of the two buttons. |
11 - Define functions of “Button -” and “Button+”when short pressing and long pressing it.
Define functions of “Button -” and “Button+”when short pressing and long pressing it.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | short pressing changes volume, long pressing changes default ringtone |
| 1 | 1 | long pressing changes volume, short pressing changes default ringtone |
42 - Get the Wireless Button’s battery status
Get the Wireless Button’s battery status.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal battery level. |
| 255 | 255 | Low battery level. |
80 - Which notification would be sent when the state of Doorbell is changed
To set which notification would be sent to the associated nodes in association group 1 when the state of Doorbell is changedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send Nothing. |
| 1 | 1 | Send Hail CC. |
| 2 | 2 | Send Basic report CC. |
81 - Enable/disable to send a notification to associated nodes when the Wireless Button’s battery is in low battery state
Enable/disable to send a notification to associated nodes in association group 1 when the Wireless Button’s battery is in low battery state.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable. |
241 - Pair the Wireless Button with your Doorbell
Pair the Wireless Button with your Doorbell. When the Doorbell enters into pair mode, the blue LED will blink slowly, at this time, press the Wireless Button once, if the blue LED is changed to be solid, which means the pairing is successful.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1431655765 | 1431655765 | Start the pair mode. |
252 - Enable/ disable lock the configuration parameters
Enable/ disable lock the configuration parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
255 - Reset your Doorbell
Reset your Doorbell.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset the configuration parameters of your Doorbell. |
| 1431655765 | 1431655765 | Reset to factory default settings. |
Operating instructions (4)
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing.
Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing.
Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is missing or inoperable.
1. Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 2. Support doorbell music updating.
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | Aeon Labs Doorbell Gen5 manual.pdf |
