Vision
Curtain Module
ZW4111EU-5
Window Covering - Pos/End Aware
02
ZM5101
6.51.06
0x0109 (265)
0x2018 (8216)
0x1805 (6149)
ZC10-16020006
2015-11-23 22:03:59.5164
N/A
Enhanced 232 Slave
Always On Slave
This module will send open/close signal to the appliance that attached to this module by receiving Z-Wave™ signal from controller or manually switch. Our special design the curtain not only can be opened and closed but also can be stopped under the Multilevel Switch command on the controller. When the device is secure included into Z-Wave network, above communication will be encrypted. This module also acts as repeater (supporting FLiRS devices).
* Size: 39.5x 50 x 19 mm * Open/Close; UP/DOWN USE * Working Voltage: DC 100V-230V * Relay Normal Output: 8A (max) * Negative Relay Output * Wired & Terminal Type available

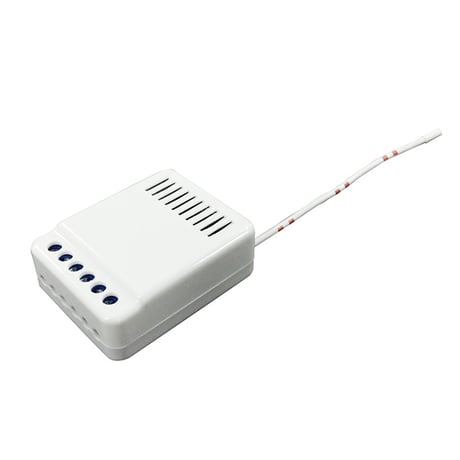

Product Picture
3. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into“inclusion” mode, and following its instruction to add the ZW4111 to your controller. To get in the “inclusion” mode, press the program switch 3 times or outer switch 1 / switch 2 to be included. NOTE: The red LED will flash if ZW4111 has not been included before or the red LED will be OFF.
For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZW 4101 / ZW4111 from your controller. Press the program switch or outer switch 1 / switch 2 3 times to be excluded.
Press Program Switch and power on till 5 seconds, ZW4111 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)
