show home
Smart Plug(2 channel)
ZW37
On/Off Power Switch
01
ZM5202
6.51.06
0x015D (349)
0x0221 (545)
0x251C (9500)
ZC10-16010013
2016-01-25 13:33:06.0334
N/A
Routing Slave
Always On Slave
Smart Plug(2 channels)
The 2 ports smart plug provides one Z-Wave outlet for remote controlled by controller through Z-Wave gateway for internet of thing service and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can now control your device from your mobile phone devices. the other outlet will be manual On/Off by push button on front. The outlets have maximum load for 600W Incandescent, ½ HP motor or 1200W resistive.

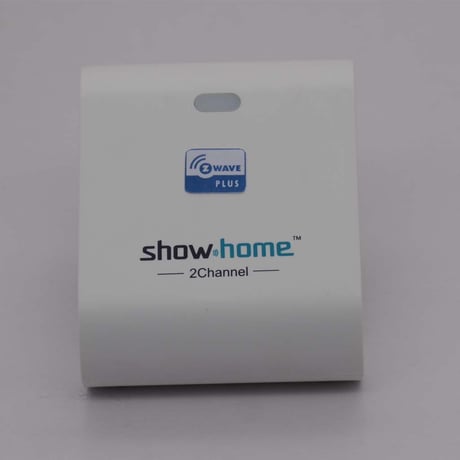

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press up and release the toggle to include it in the network.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press up and release the toggle to exclude it from the network.
Press and hold the top button for at least 3 seconds while you plug the smart switch into a receptacle. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
