Oomi
Bulb
FT098-A52
Light Dimmer Switch
HW: 62 FW: 1.03
ZM5101
6.51.06
0x0086 (134)
0x0103 (259)
0x0062 (98)
ZC10-15120006
2015-12-04 16:06:27.1308
N/A
Enhanced 232 Slave
Always On Slave

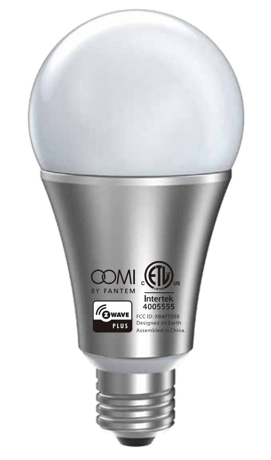

Oomi Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave.
Oomi Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave. It’s a bulb has a Smart RGB LED, which can be used to add colour to your home. The bulb has 5 main colour channels available for you to adjust: Red, Green, Blue, Warm White and Cold White. You can configure its colour according to your favour. The Bulb is also a security Z-wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade.
32 - Enable/disable to send out a report when the Bulbs color is changed.
Enable/disable to send out a report when the Bulbs color is changed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. |
| 1 | 1 | Enable and the Hail CC is selected. |
34 - Enable/disable the function of using external switch to turn on/off the bulb.
Enable/disable the function of using external switch to turn on/off the bulb.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable. |
35 - Enable/disable the function of using external switch to change the bulbs color.
Enable/disable the function of using external switch to change the bulbs color.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable. |
80 - Configure which notification report would be sent when the state of Bulb is changed.
To configure which notification report would be sent in association group 1 when the state of Bulb is changed.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send Nothing. |
| 1 | 1 | Send Hail CC. |
| 2 | 2 | Send Basic Report CC. |
252 - Enable/disable to lock the configuration parameters.
Enable/disable to lock the configuration parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. |
| 1 | 1 | Enable. |
255 - Reset your Bulb
Reset your Bulb.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Reset all configuration parameters to default settings. |
| 1431655765 | 1431655765 | Reset the Bulb to factory default settings. |
Turn the primary controller of Z-Wave network into inclusion mode, press the external switch of the Bulb to turn it off and then press the external switch again to turn it on.
Turn the primary controller of Z-Wave network into exclusion mode, press the external switch of the Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times.
Turn the controller of Z-Wave network into exclusion mode, press the external switch of the Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times. After the Bulb is excluded from network, it will be reset to factory default state. Use this procedure only in the event that your primary network controller is missing or inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. Contain NFC function.
